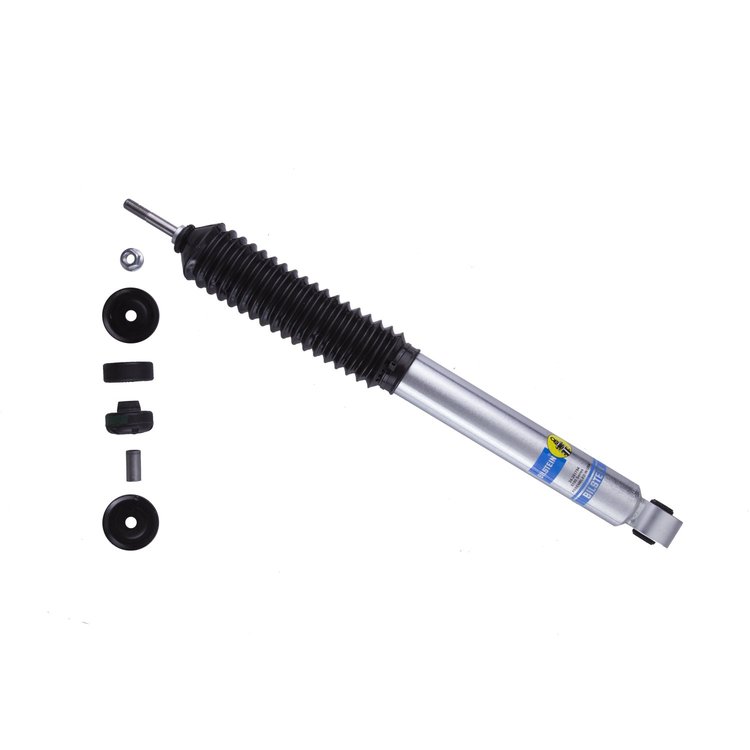

24-251754 B8 5100 Shock Absorber; 2014-2018 Ram 2500; Front
Product Discontinued
BILSTEINPART NUMBER: 132-24-251754

24-251754 B8 5100 Shock Absorber; 2014-2018 Ram 2500; Front

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    B8 5100 - Shock Absorber
  • 46mm Monotube Shock Absorber
  • Ram 2500 2018-2014
  • Position: Front
  • Boot Included: Black Bellows
  • Internal Design: Monotube
  • Finish: Zinc Plated
  • Upper Mount Type: Stem


  • 24-251754 Shock Absorber Features:

  • Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
  • Lower Mount Type: Eye 14.1mm
  • Spring Seat Included: No
  • Reservoir: No
  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Extended Length (IN): 22.64
  • Collapsed Length (IN): 15.04
  • Body Diameter (ID): 46mm
  • Collapsed Length (MM): 382.0
  • Extended Length (MM): 575.0

    Shocks Designed for Lifted Vehicles

    Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.

Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.71 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.1mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.04 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length7.60 in.
Extended Length22.64 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-251754
Package Qty1
Package TypeEA
