Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

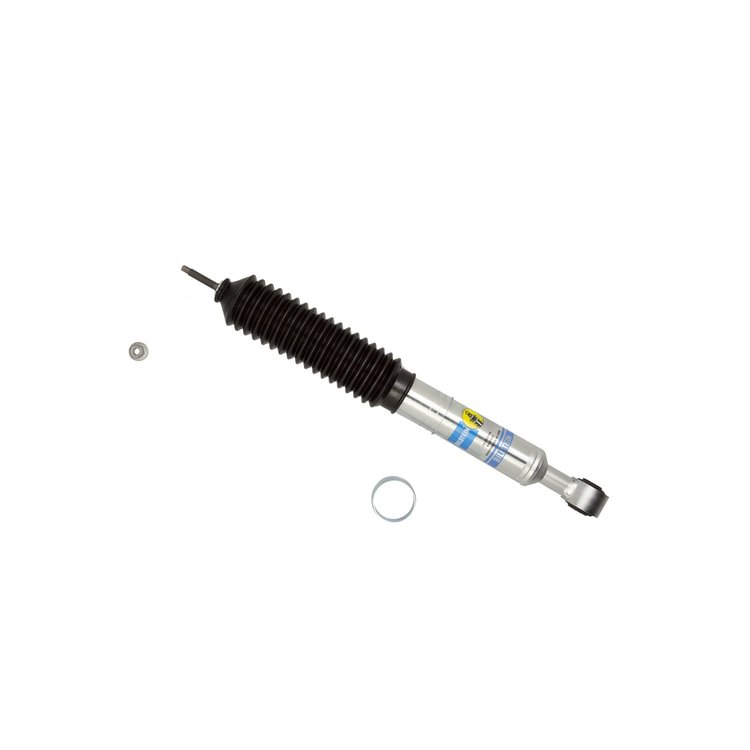

- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Spring Seat Included: Yes
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Lower Mount Type: Eye 14.1mm
- Reservoir: No
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 19.65
- Collapsed Length (IN): 14.76
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 375.0
- Extended Length (MM): 499.0
24-253154 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight6.0 PG
Part CategoryPerformance Parts
SeriesB8 5100 (Ride Height Adjustable)
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.1mm
Travel Length4.89 in.
Shaft Diameter14mm
Piston Diameter46mm
Extended Length19.65 in.
Collapsed Length (In)14.76 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeStem
Vendor Part NumberB524-253154
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
