Product Discontinued
BILSTEINPART NUMBER: 132-24-267021

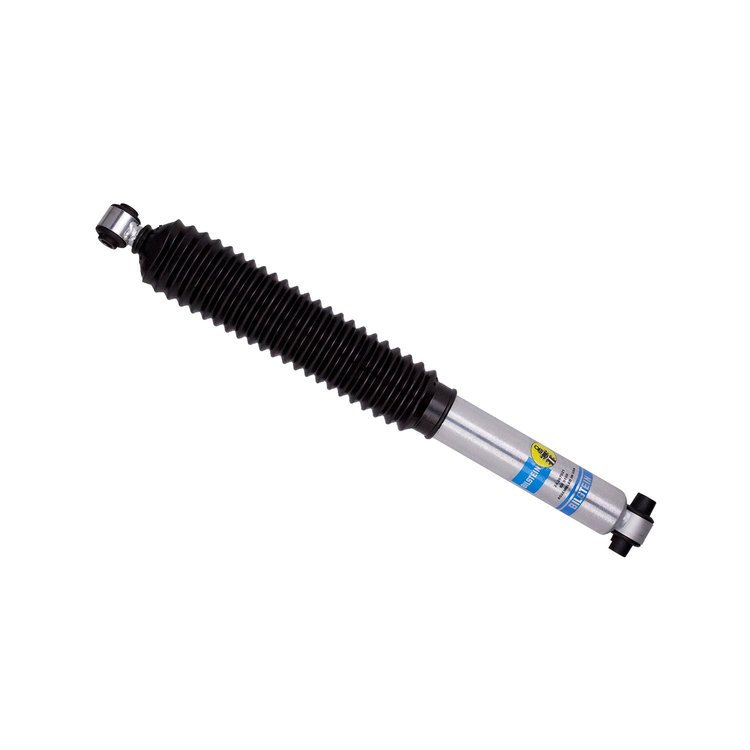

24-267021 B8 5100 Suspension Shock Absorber Fits Select Chevrolet/GMC/Isuzu/Oldsmobile
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Trailblazer 2009-2002
- Trailblazer EXT 2006-2002
- GMC Envoy 2009-2002
- Envoy XL 2006-2002
- Isuzu Ascender 2008-2003
- Oldsmobile Bravada 2004-2002
- Position: Rear
24-267021 Shock Absorber Features:
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 12.9mm
- Lower Mount Type: Eye 12.9mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 23.30
- Collapsed Length (IN): 14.63
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 371.5
- Extended Length (MM): 591.7
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.49 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 12.9mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)14.63 in.
Upper Mount TypeEye 12.9mm
SeriesB8 5100
Travel Length8.67 in.
Extended Length23.30 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-267021
Package Qty1
Package TypeEA
