Product Discontinued
BILSTEINPART NUMBER: 132-24-285285

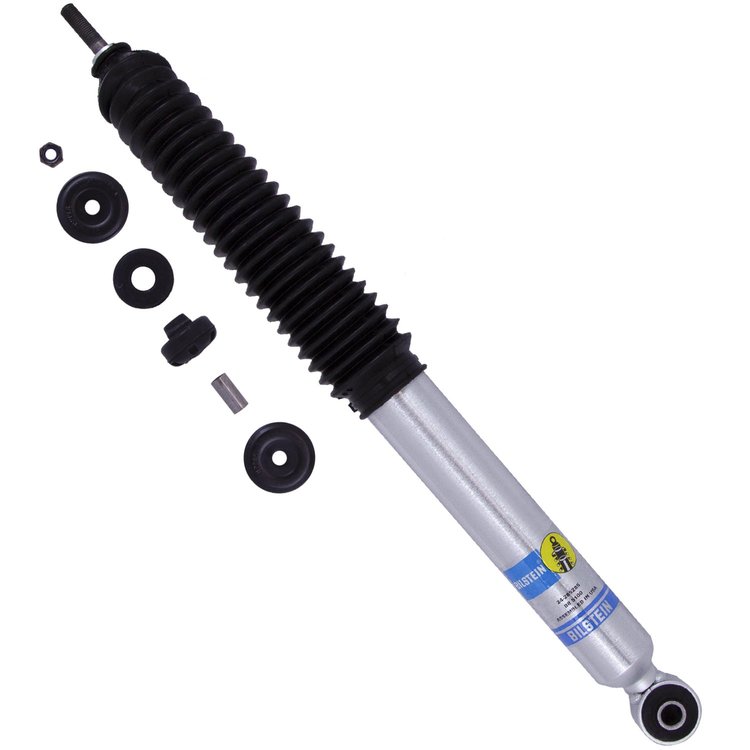

24-285285 B8 5100 Suspension Shock Absorber; 2017-2026 Ford F-250 Super Duty, 2017-2026 F-350 Super Duty
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford F-250 Super Duty
- F-350 Super Duty 2021-2017
- Position: Front
- Boot Included: Black Bellows
- Internal Design: Monotube
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Eye 14.4mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Extended Length (IN): 25.75
- Collapsed Length (IN): 16.85
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 428.0
- Extended Length (MM): 654.0
24-285285 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight6.0 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.4mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.85 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length8.90 in.
Extended Length25.70 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-285285
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
