Vehicle Info NeededBILSTEINPART NUMBER: 132-24-285667

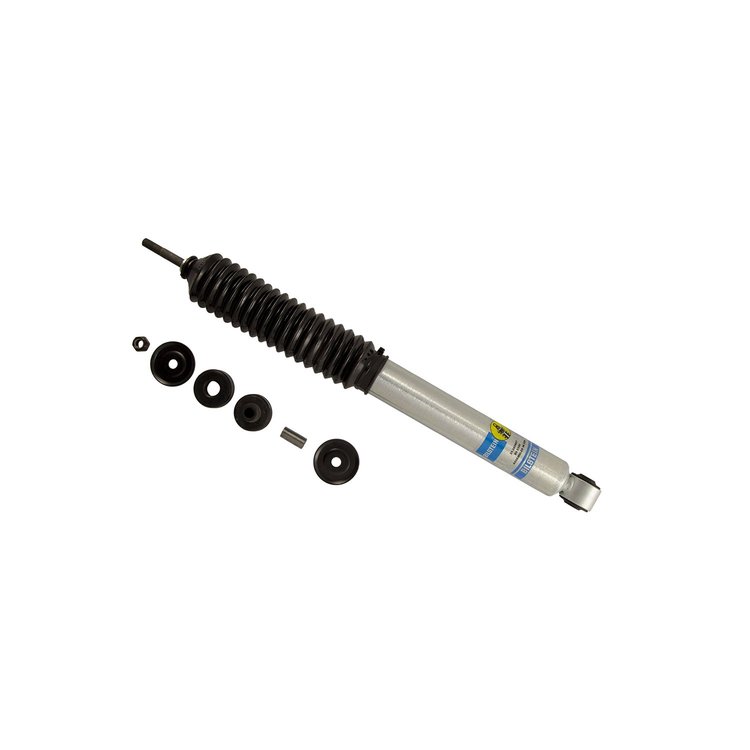

24-285667 B8 5100 Suspension Shock Absorber; 2014-2018 Ram 2500
$12300
More than 10 available
Ships Today
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ram 2500 2018-2014
- Position: Rear
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Lower Mount Type: Eye 14.4mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Extended Length (IN): 22.97
- Collapsed Length (IN): 16.56
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 420.5
- Extended Length (MM): 583.5
24-285667 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight15.0 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.4mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.56 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length6.41 in.
Extended Length23.00 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-285667
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
