Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

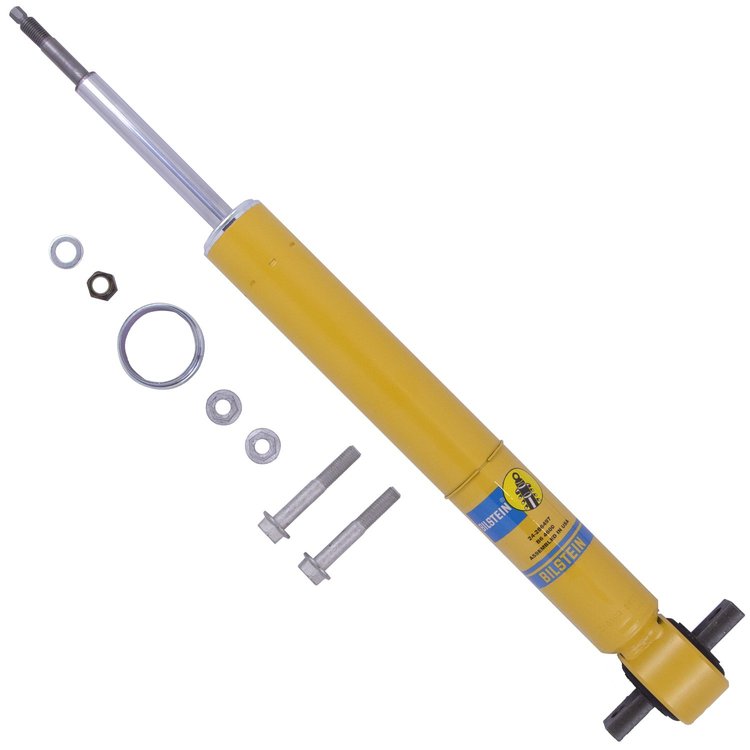

- B6 4600 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford F-150 2014
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Lower Mount Type: Crossbar
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter (ID): 46mm
24-286497 Shock Absorber Features:
The Ideal Shock for On and Off-Road Handling
The Bilstein B6 4600 Shock Absorber delivers improved suspension performance for light truck and SUV applications. These shocks feature special valving for reacting to consistently changing surface conditions and high internal gas pressure to withstand pulling trailers or off-road driving. The mono-tube design ensures consistent handling responsiveness and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.
Part TypeShock Absorber
Product LineBilstein B6 4600 Shock Absorbers
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight8.3 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeCrossbar
Shaft Diameter18mm
Piston Diameter46mm
Collapsed Length (In)16.04 in.
Upper Mount TypeStem
SeriesB6 4600
Travel Length5.11 in.
Extended Length21.15 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB524-286497
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
