Vehicle Info NeededBILSTEINPART NUMBER: 132-24-292658

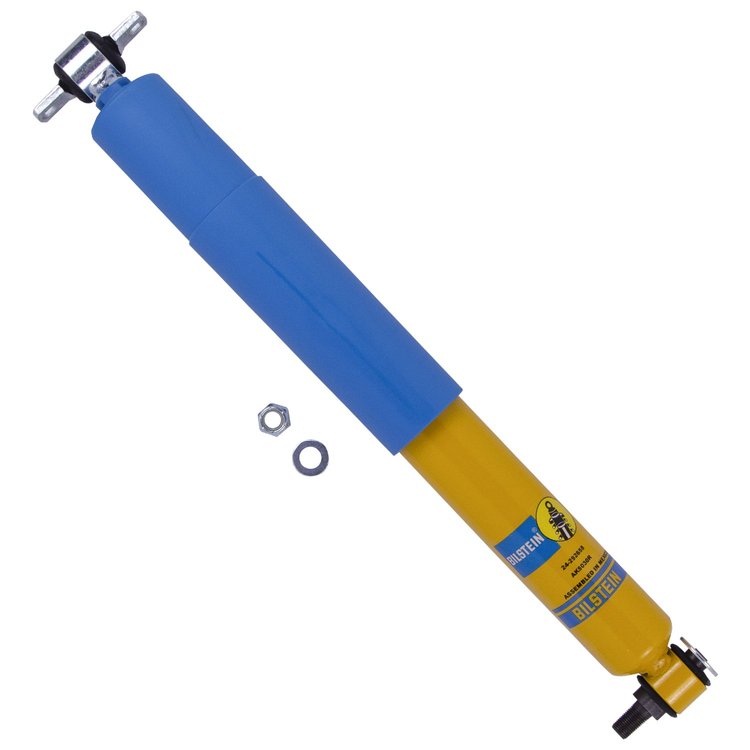

24-292658 AK Series Shock Absorber
$12516
Ships on 09/08/2026
Lowest Price Guarantee- AK Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Blue Straight
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Bar Pin
- Lower Mount Type: Cantilever
- Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Rebound @0.52M/S: 2730
- Extended Length (IN): 20.28
- Collapsed Length (IN): 13.11
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 333.0
- Extended Length (MM): 515.0
- Compression @0.52M/S: 805
- Valving Identifier: 300/120
- Piston Type: Digressive
- Body Material: Steel
24-292658 Shock Absorber Features:
Performance Shocks for OEM Mounting
Bilstein AK-Series Shock Absorbers feature a monotube gas-pressure design with steel spring valve discs that deliver consistent dampening performance and durability for motorsports applications. These shocks are tailored for vehicles with OE-style mounting and must meet racing sanctioning body requirements.
Part TypeShock Absorber
Product LineBilstein AK-Series Shock Absorbers
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight4.4 PG
Part CategoryPerformance Parts
Boot IncludedBlue Straight
Lower Mount TypeCantilever
Shaft Diameter11mm
Piston Diameter46mm
Collapsed Length (In)13.11 in.
Upper Mount TypeBar Pin
SeriesAK Series
Body MaterialSteel
Travel Length7.17 in.
Extended Length20.28 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB524-292658
Package Qty1
Package TypeEA
