Vehicle Info NeededBILSTEINPART NUMBER: 132-24-293471

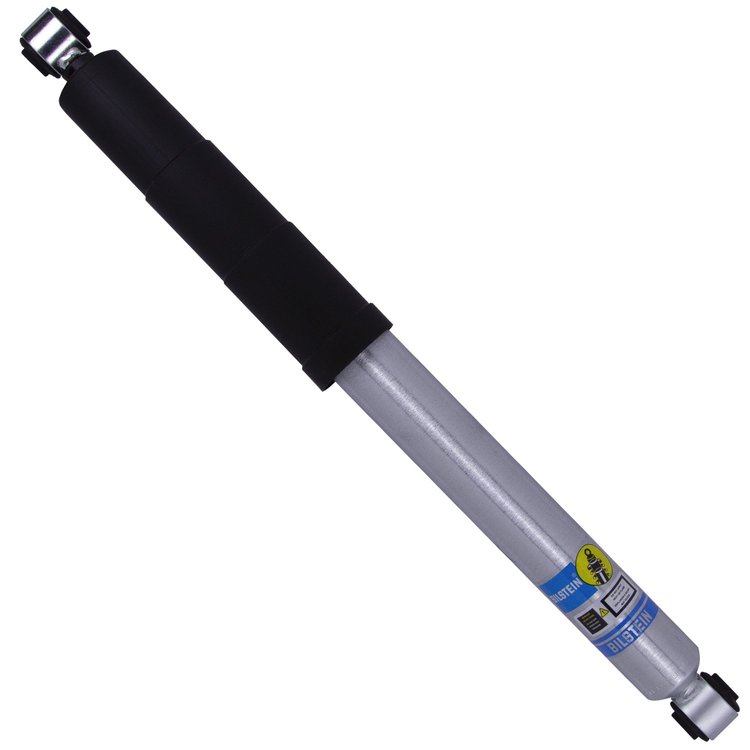

24-293471 B8 5100 Suspension Shock Absorber; 2019-2026 Chevrolet Silverado 1500
$12300
More than 10 available
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Silverado 1500 2021-2019
- GMC Sierra 1500 2021-2019
- Position: Rear
- Boot Included: Black Straight
- Internal Design: Monotube
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Finish: Zinc Plated
- Upper Mount Type: Eye 14.12mm
- Lower Mount Type: Eye 14.12mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Extended Length (IN): 24.93
- Collapsed Length (IN): 15.71
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 399.0
- Extended Length (MM): 633.2
24-293471 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.0
Package Width3.1
Package Length26.5
Weight5.185 PG
Part CategoryPerformance Parts
Boot IncludedBlack Straight
Lower Mount TypeEye 14.12mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.71 in.
Upper Mount TypeEye 14.12mm
SeriesB8 5100
Travel Length9.22 in.
Extended Length24.93 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-293471
Package Qty1
Package TypeEA
