Vehicle Info NeededBILSTEINPART NUMBER: 132-24-296830

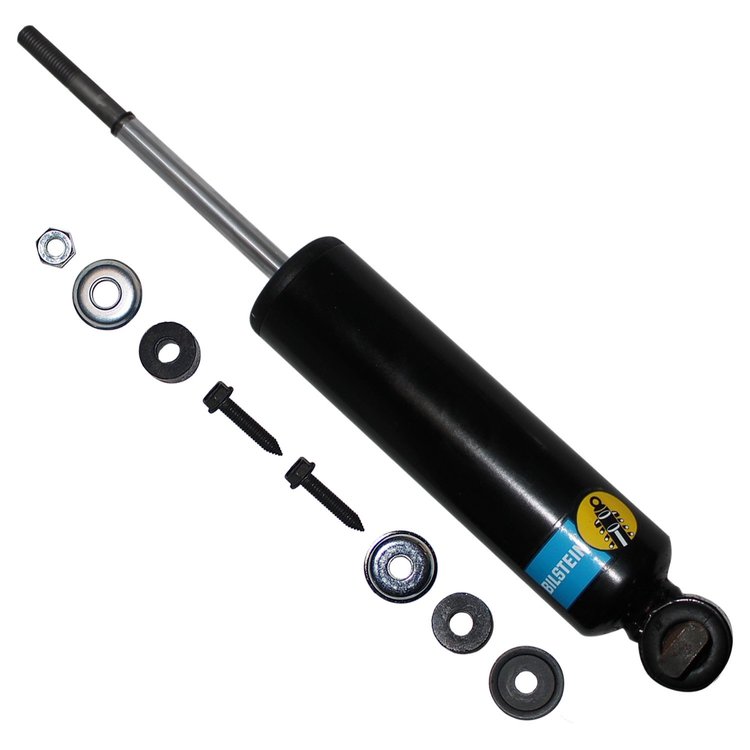

24-296830 SMX Series Shock Absorber
$17915
3 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee- SMX Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Black Paint
- Upper Mount Type: Stem
- Lower Mount Type: Bar Pin
- Spring Seat Included: No
- Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Extended Length (IN): 12.01
- Collapsed Length (IN): 8.27
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 210.0
- Extended Length (MM): 305.0
- Valving Identifier: 5 (com/reb)
- Piston Type: Linear
- Body Material: Steel
- Compression @ 5"/Sec: 117
- Rebound @ 5"/Sec: 149
24-296830 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length22.59
Weight3.24 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeBar Pin
Shaft Diameter11mm
Piston Diameter46mm
Collapsed Length (In)8.27 in.
Upper Mount TypeStem
SeriesSMX Series
Body MaterialSteel
Travel Length3.74 in.
Extended Length12.01 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishBlack Paint
Vendor Part NumberB524-296830
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
