Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

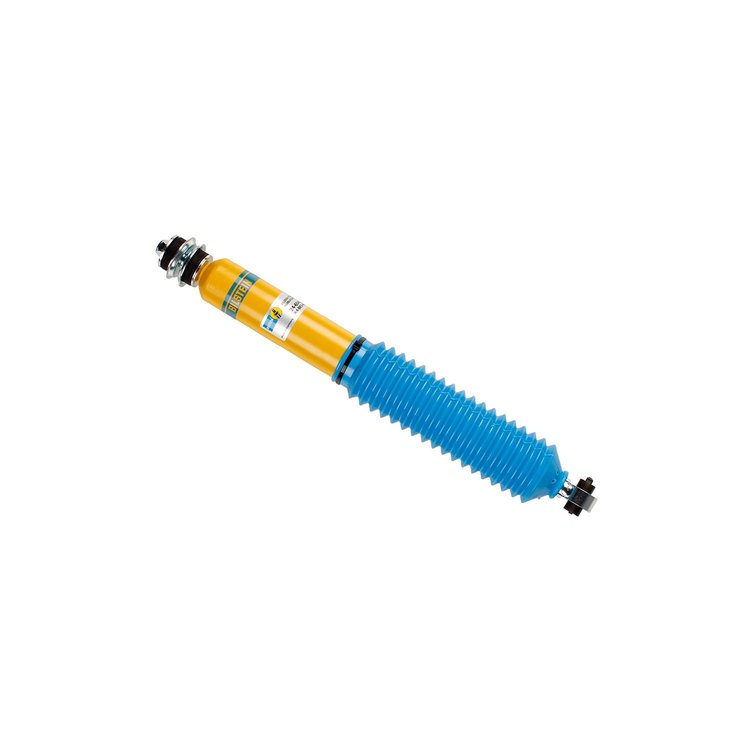

- Motorsports - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Blue Bellows
- Internal Design: Monotube
- Finish: Yellow Paint
- Upper Mount Type: Stem
- Lower Mount Type: Eye 10mm
- Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 1800
- Extended Length (IN): 17.83
- Collapsed Length (IN): 11.44
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 290.5
- Extended Length (MM): 453.0
- Compression @0.52M/S: 1200
- Valving Identifier: N/A
- Piston Type: Linear
- Body Material: Steel
- Position: Rear
24-604277 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length22.45
Weight3.99 PG
Part CategoryPerformance Parts
Boot IncludedBlue Bellows
Lower Mount TypeEye 10mm
PositionRear
Shaft Diameter11mm
Piston Diameter46mm
Collapsed Length (In)11.44 in.
Upper Mount TypeStem
SeriesMotorsports
Body MaterialSteel
Travel Length6.40 in.
Extended Length17.83 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishYellow Paint
Vendor Part NumberB524-604277
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
