Bilstein 24-186520 Features:

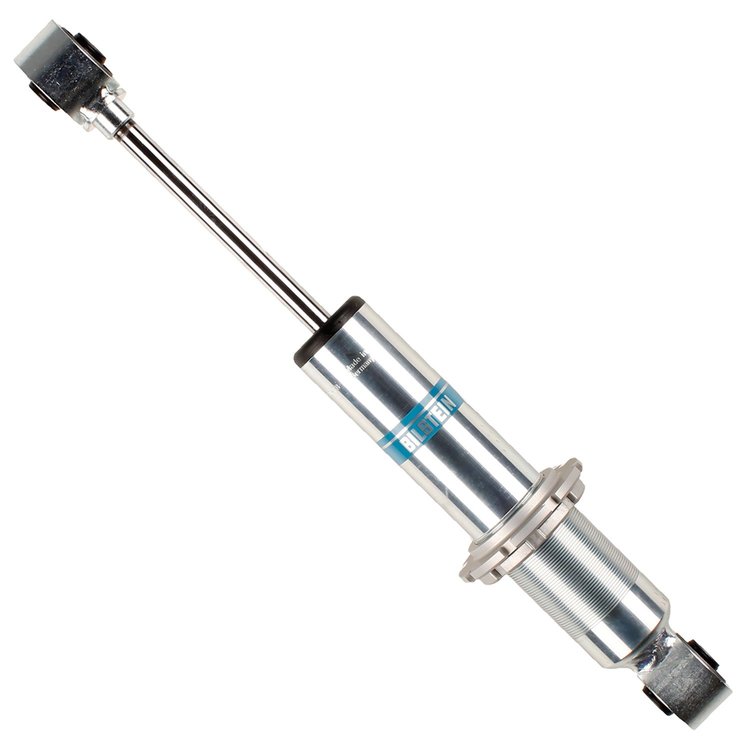

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

• Available for standard and coilover applications in a wide variety of lengths
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving
• Lower Mount Type: Eye 14.2mm
• Extended Length (IN): 18.22
• Collapsed Length (IN): 12.34
• Upper Mount Type: Eye 14.2mm
• Series: M 7100 Classic (Coilover)
• Rebound @0.52m/s: 3030
• Stroke/Travel Length (IN): 5.90
• Reservoir: No
• Stroke/Travel Length (mm): 149.9
• Body Design: Threaded Body (Coilover)
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• Internal Design: Monotube
• Collapsed Length (MM): 313.5
• Piston Diameter: 46mm
• Extended Length (MM): 463.0
• Shaft Diameter (mm): 14.0
• Compression @0.52m/s: 965
• Spring Hardware: Single Rate (2.5in)
• Spring Seat Included: Lower
• Finish: Zinc Plated
