Vehicle Info NeededBILSTEINPART NUMBER: 132-24328258

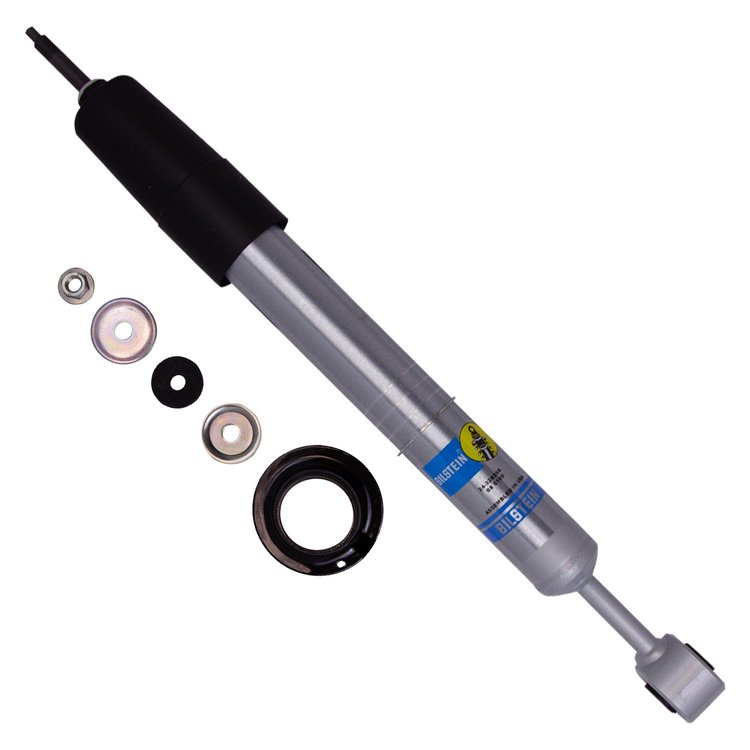

24-328258 B8 5100 (Ride Height Adjustable) Front Shock Absorber 2014-2010 Toyota FJ Cruiser, Select Toyota 4Runner/Lexus GX460
$17600
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeB8 5100 (Ride Height Adjustable) - Shock Absorber2014-2010 Toyota FJ Cruiser Select Toyota 4Runner/Lexus GX460 Position: Front Boot Included: Yes Internal Design: Monotube Finish: Zinc-Plated
Bilstein 24-328258 Features:
- Designed for front OE coilover-style suspension
- provide increased wheel travel and improved handling
- Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application)
- 46 mm digressive piston with self-adjusting deflective disc valve setting
- Spring Seat Included: Yes
- Adjustable Damping: Non-Adjustable
- Collapsed Length (in): 17.50
- Extended Length (in): 22.31
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.6
Package Width3.7
Package Length26.7
Weight5.21 PG
Part CategoryPerformance Parts
Boot IncludedBlack Straight
Lower Mount TypeEye 14.2mm
Compressed Length17.5 in.
PositionFront
Strut Mount Insulator(S) IncludedYes
Shaft Diameter14mm
QuantitySold individually
Piston Diameter46mm
Collapsed Length (In)17.50 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Adjustable Ride HeightYes
Adjustable ReboundNo
Body Diameter46 mm
Travel Length4.81 in.
Extended Length22.31 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part Number24-328258
Package Qty1
Package TypeEA
