Bilstein 24-329200 Features:

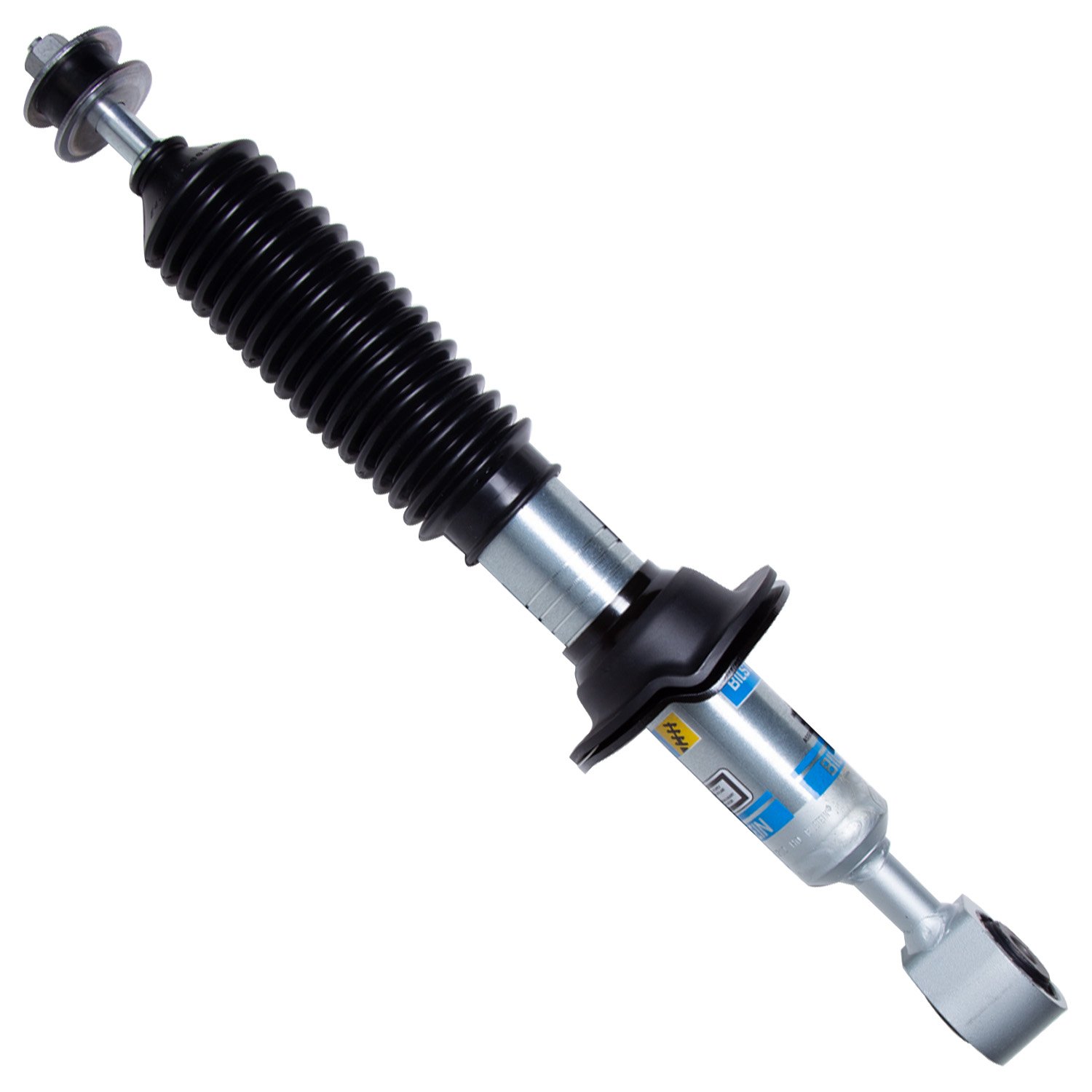

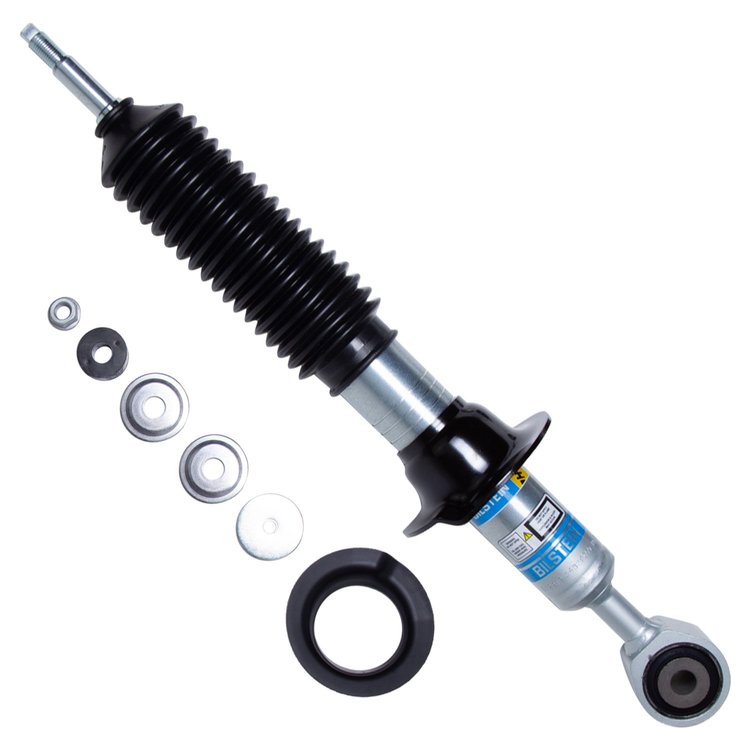

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• Adjustable spring seat offers 0-2.75in of lift, depending on the application
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Collapsed Length (IN): 15.91
• Upper Mount Type: Stem
• Lower Mount Type: Eye 16.2mm
• Extended Length (IN): 20.22
• Stroke/Travel Length (IN): 4.31
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Series: B8 5100 (Ride Height Adjustable)
• Stroke/Travel Length (mm): 109.5
• Collapsed Length (MM): 404.0
• Piston Diameter: 46mm
• Internal Design: Monotube
• Extended Length (MM): 513.5
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
• Boot Included: Black Bellows
• Spring Seat Included: Yes
• Finish: Zinc Plated
