Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5165 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Eye 5/8in
- Spring Seat Included: No

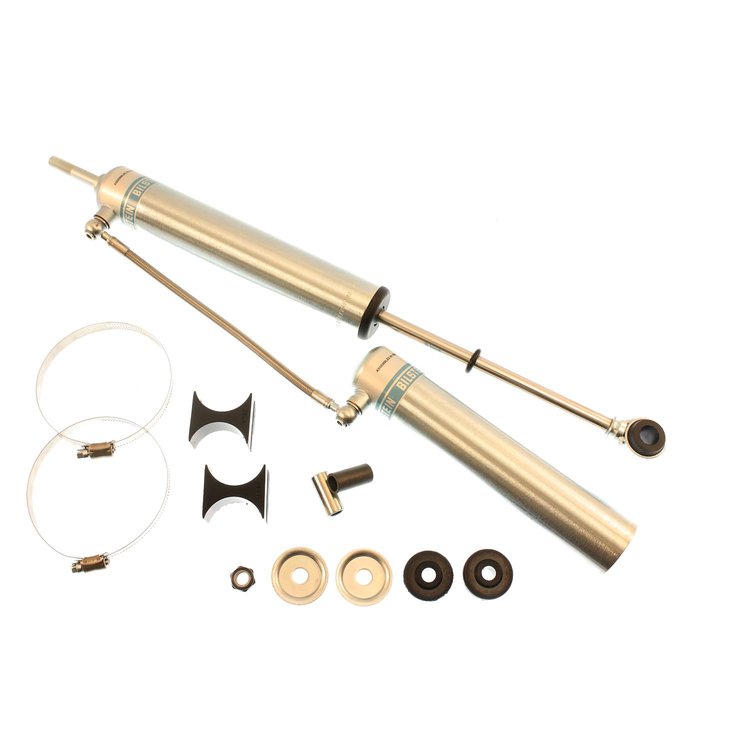

- Bilstein B8 5165 remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 remote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
- Reservoir: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 3665
- Extended Length (IN): 21.16
- Collapsed Length (IN): 12.80
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 325.0
- Extended Length (MM): 537.5
- Compression @0.52M/S: 2400
- Collapsed Length (IN) Rounded: 13
- Extended Length (IN) Rounded: 21
- Optional Reservoir Clamp: 11-176015
- Mount Type: Stem-to-Eye
25-177480 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight7.14 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)12.80 in.
Upper Mount TypeStem
SeriesB8 5165
Mount TypeStem-to-Eye
Travel Length8.37 in.
Extended Length21.16 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB525-177480
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
