Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

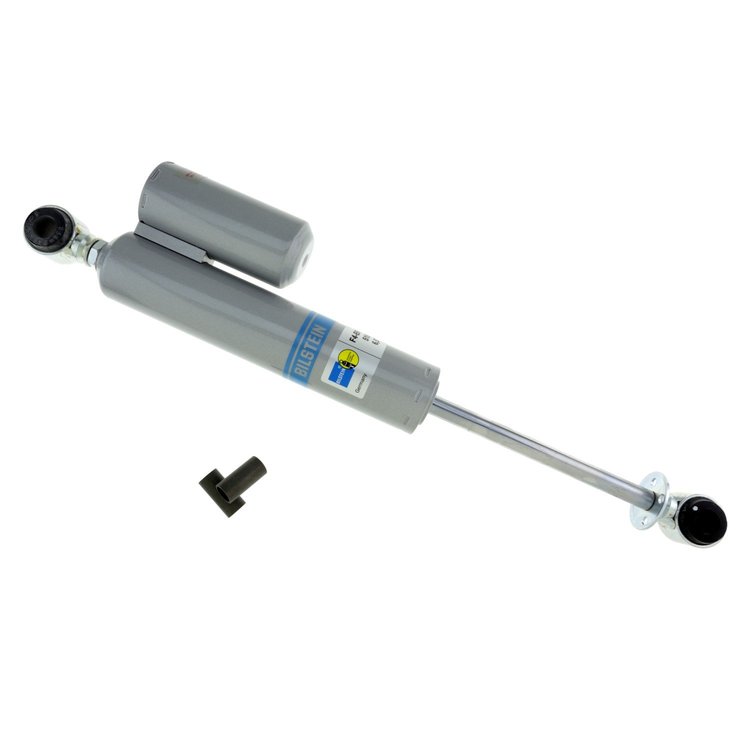

- B8 5150 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Platinum Powder coat
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.
- Spring Seat Included: No
- Reservoir: Yes
- Body Design: 46mm ID Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2665
- Extended Length (IN): 18.78
- Collapsed Length (IN): 12.30
- Collapsed Length (MM): 312.5
- Extended Length (MM): 477.0
- Compression @0.52M/S: 740
25-186284 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight5.25 PG
Part CategoryPerformance Parts
SeriesB8 5150
Boot IncludedNo
Lower Mount TypeEye 5/8in
Travel Length6.48 in.
Shaft Diameter14mm
Extended Length18.78 in.
Collapsed Length (In)12.30 in.
Internal DesignMonotube
FinishPlatinum Powder coat
Upper Mount TypeEye 5/8in
Vendor Part NumberB525-186284
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
