Product Discontinued
BILSTEINPART NUMBER: 132-25-242515

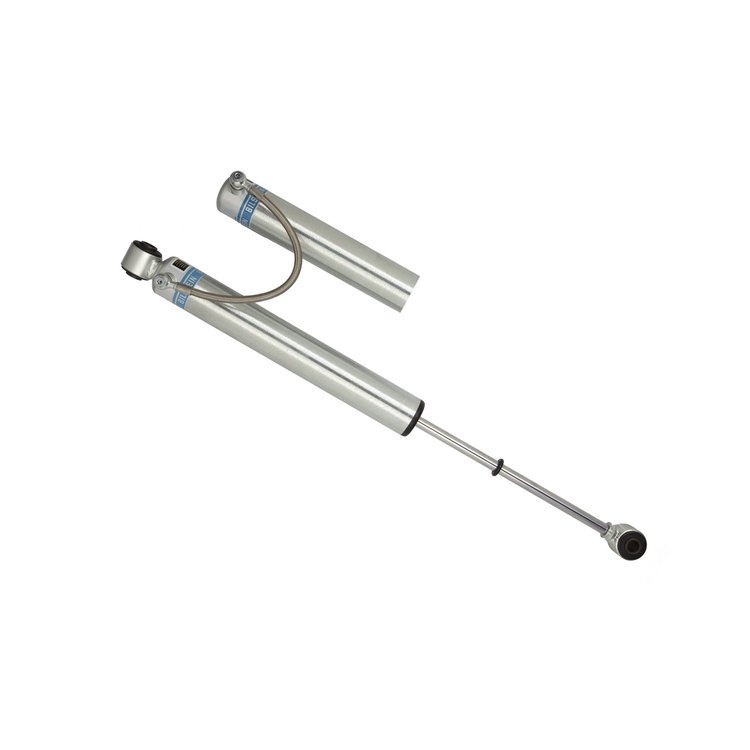

25-242515 B8 5160 Shock Absorber; 2007-2018 Chevrolet Silverado 1500; Rear
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5160 - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Silverado 1500 2018-2007
- Silverado 1500 LD 2019
- GMC Sierra 1500 2018-2007
- Sierra 1500 Limited 2019
- Position: Rear
- Boot Included: No
- Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 14.4mm
- Lower Mount Type: Eye 14.4mm
- Spring Seat Included: No
- Reservoir: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 26.81
- Collapsed Length (IN): 16.14
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 410.0
- Extended Length (MM): 681.0
- Optional Reservoir Clamp: 11-176015
- Billet Reservoir Clamp Included: No
25-242515 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight7.85 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 14.4mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.14 in.
Upper Mount TypeEye 14.4mm
SeriesB8 5160
Travel Length10.67 in.
Extended Length26.81 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB525-242515
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
