Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

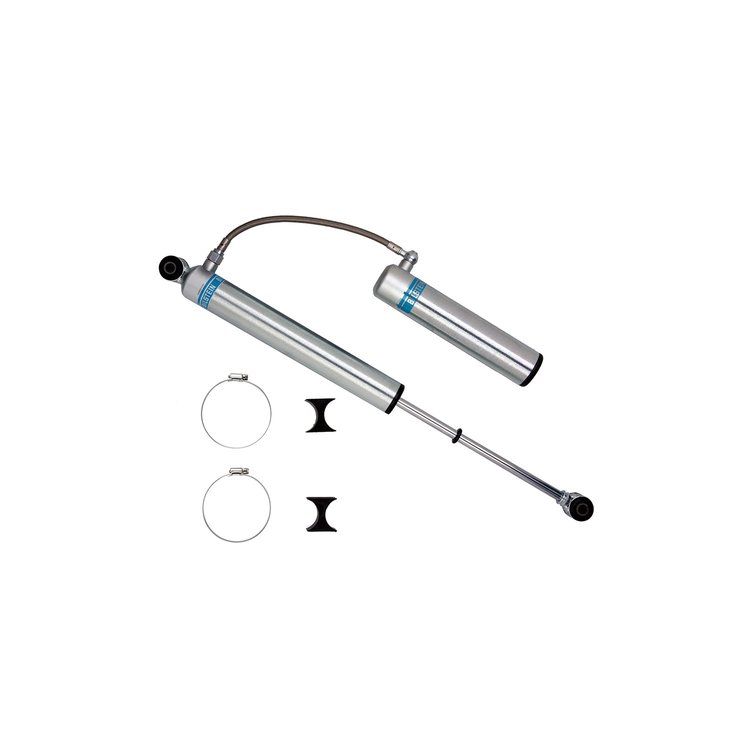

- B8 5160 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford F-150
- Position: Rear
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 12mm
- Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Lower Mount Type: Eye 12mm
- Spring Seat Included: No
- Reservoir: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 29.44
- Collapsed Length (IN): 17.52
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 445.0
- Extended Length (MM): 748.0
- Optional Reservoir Clamp: 11-176015
- Billet Reservoir Clamp Included: No
25-261400 Shock Absorber Features:
Performance Shocks Designed for Lifted Vehicles
The Bilstein B8 5160 Shock Absorber features a remote reservoir that adds increased cooling capacity and wheel travel for applications demanding stronger dampening from lift kits or larger wheels and tires. A mono-tube design with digressive valving adapts to ever-changing road conditions and delivers handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.
Part TypeShock Absorber
Product LineBilstein B8 5160 Shock Absorbers
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight7.85 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 12mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)17.52 in.
Upper Mount TypeEye 12mm
SeriesB8 5160 Classic
Travel Length11.92 in.
Extended Length29.44 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB525-261400
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
