Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

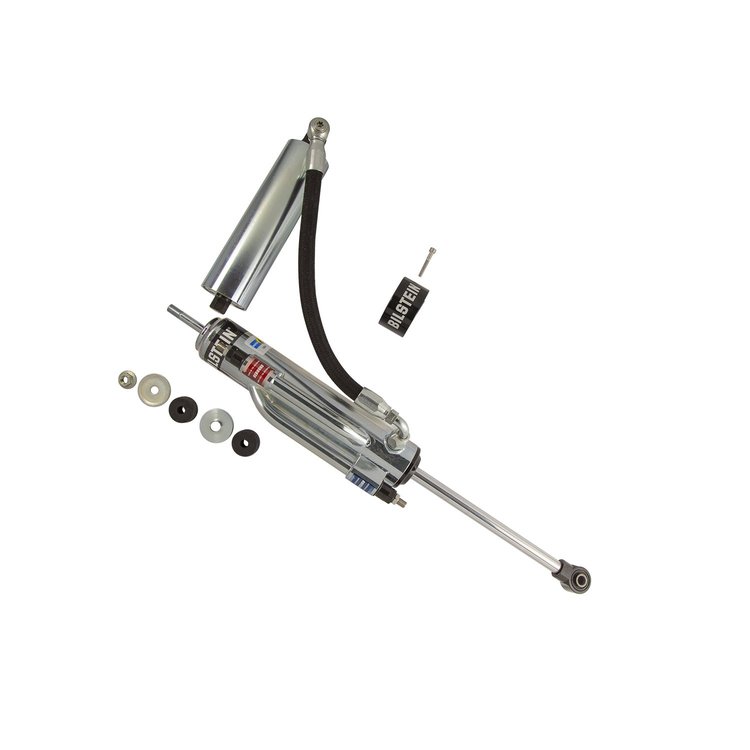

- B8 8100 (Bypass) - Shock Absorber
- 60mm Shock Absorber
- Toyota Tacoma
- Position: Rear Right
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
- Lower Mount Type: Eye 12mm
- Spring Seat Included: No
- Reservoir: Yes
- Adjustable Damping: Double Adjustable – Compression and Rebound
- Body Design: 60mm ID Bypass Body (Non-Coilover)
- Extended Length (IN): 23.94
- Collapsed Length (IN): 14.25
- Collapsed Length (MM): 362.0
- Extended Length (MM): 608.0
25-269819 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height6.0
Package Width14.0
Package Length32.0
Weight19.2 PG
Part CategoryPerformance Parts
SeriesB8 8100 (Bypass)
Boot IncludedNo
Lower Mount TypeEye 12mm
Shaft Diameter18mm
Extended Length23.94 in.
Collapsed Length (In)14.25 in.
Adjustable DampingDouble Adjustable – Compression and Rebound
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeStem
Vendor Part NumberB525-269819
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
