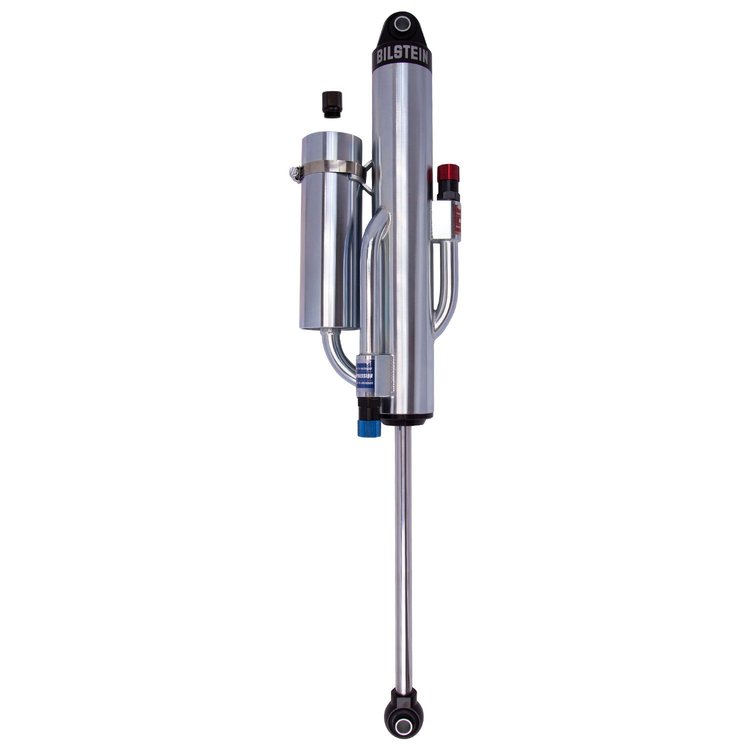

25-305258 B8 8100 (Bypass) Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Lower Mount Type: Eye 14.1mm
Spring Seat Included: No
Adjustable Damping: Double Adjustable – Compression and Rebound
Body Design: Bypass Body (Non-Coilover)
Extended Length (IN): 29.33
Collapsed Length (IN): 17.98
Body Diameter (ID): 60mm
Collapsed Length (MM): 456.7
Extended Length (MM): 745.0

Part TypeShock Absorber

BrandBILSTEIN

Package Height6.0

Package Width14.0

Package Length32.0

Weight18.5 PG

Part CategoryPerformance Parts

Boot IncludedNo

Lower Mount TypeEye 14.1mm

Shaft Diameter18mm

Piston Diameter60mm

Collapsed Length (In)17.98 in.

Upper Mount TypeEye 14.1mm

SeriesB8 8100 (Bypass)

Extended Length29.33 in.

Adjustable DampingDouble Adjustable

Part FitmentDirect Fit

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB525-305258

Package Qty1

Package TypeEA
