Bilstein 25-291292 Features:

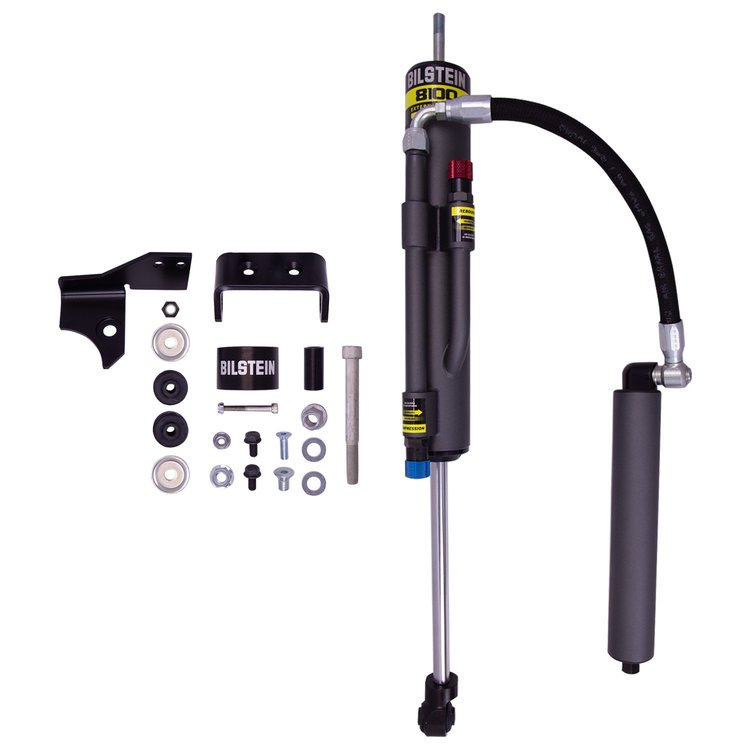

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

• Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
• 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
• Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
• Collapsed Length (IN): 17.20
• Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
• Lower Mount Type: Eye 12.1mm
• Extended Length (IN): 27.03
• Upper Mount Type: Stem
• Reservoir: Yes
• Series: B8 8100 (Bypass)
• Body Design: Bypass Body (Non-Coilover)
• Collapsed Length (MM): 437.0
• Piston Diameter: 60mm
• Internal Design: Monotube
• Extended Length (MM): 686.6
• Shaft Diameter: 18mm
• Boot Included: No
• Spring Seat Included: No
• Finish: EVO Grey
