Bilstein 25-293432 Features:

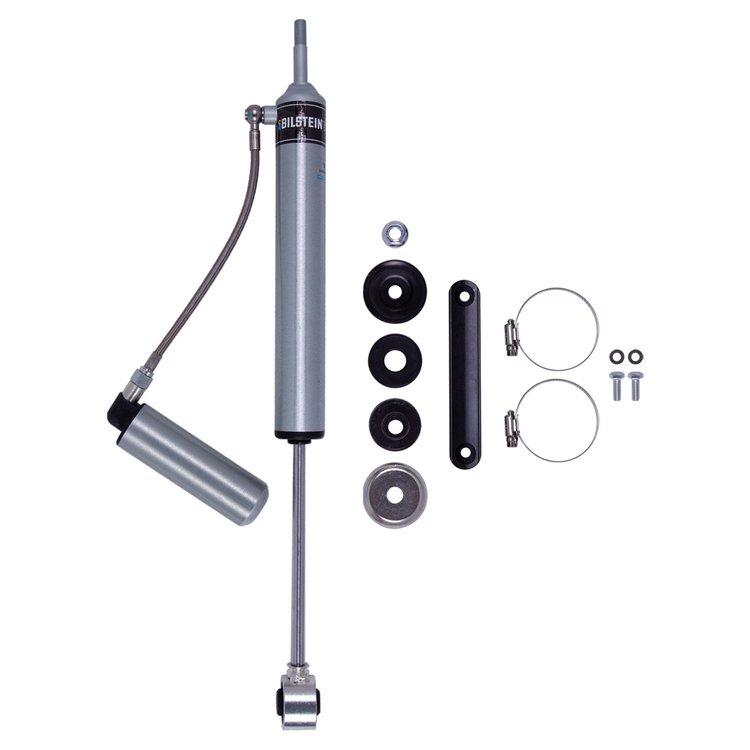

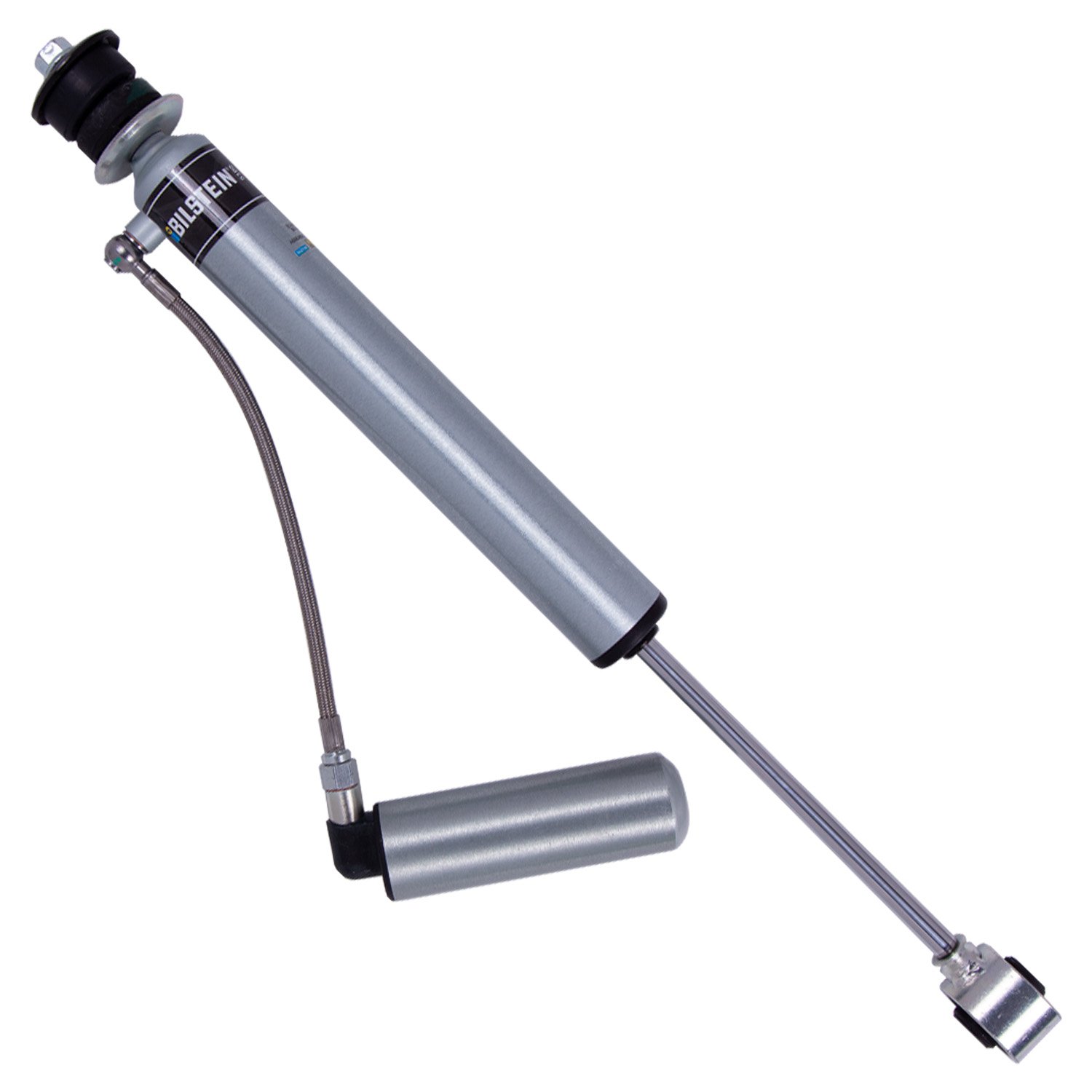

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• Remote reservoir increases shock oil capacity for greater heat dissipation
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Collapsed Length (IN): 15.22
• Adjustable Damping: Non-Adjustable
• Extended Length (IN): 24.04
• Lower Mount Type: Eye 14.1mm
• Stroke/Travel Length (IN): 8.82
• Upper Mount Type: Stem
• Billet Reservoir Clamp Included: No
• Reservoir: Yes
• Series: B8 5160
• Stroke/Travel Length (mm): 224.0
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (MM): 386.7
• Piston Diameter: 46mm
• Internal Design: Monotube
• Extended Length (MM): 610.5
• Shaft Diameter: 14mm
• Boot Included: No
• Spring Seat Included: No
• Finish: Zinc Plated
