Vehicle Info NeededBILSTEINPART NUMBER: 132-33-104645

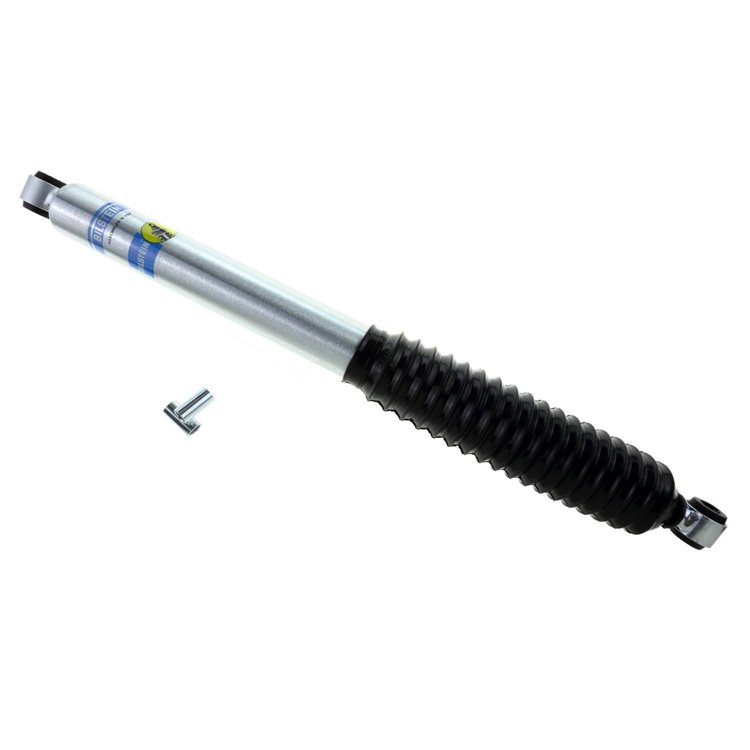

33-104645 B8 5125 Suspension Shock Absorber; 2000-2005 Ford Excursion, 1999-2004 F-250 Super Duty, 1999-2004 F-350 Super Duty
$12000
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford Excursion 2005-2000
- F-250 Super Duty 2004-1999
- F-350 Super Duty 2004-1999
- Position: Front
- Boot Included: Black Bellows
- Internal Design: Monotube
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Finish: Zinc Plated
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 1600
- Extended Length (IN): 25.93
- Collapsed Length (IN): 15.91
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 404.0
- Extended Length (MM): 658.5
- Compression @0.52M/S: 575
- Collapsed Length (IN) Rounded: 16
- Extended Length (IN) Rounded: 26
- Mount Type: Eye-to-Eye
33-104645 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.05 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.91 in.
Upper Mount TypeEye 5/8in
SeriesB8 5125
Mount TypeEye-to-Eye
Travel Length10.01 in.
Extended Length25.91 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-104645
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
