Vehicle Info NeededBILSTEINPART NUMBER: 132-33-151663

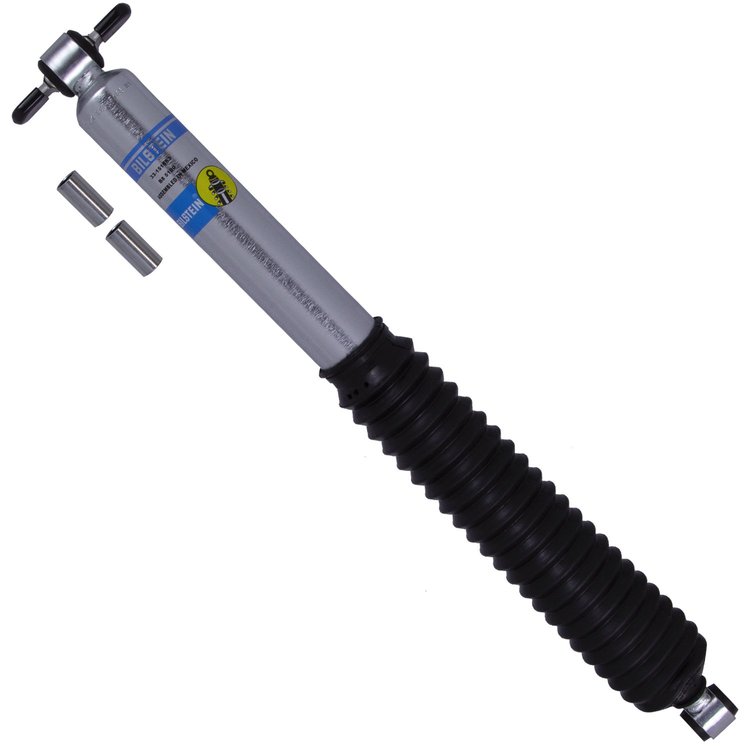

33-151663 B8 5100 Suspension Shock Absorber; 1984-2001 Jeep Cherokee, 1984-1990 Wagoneer
$12300
More than 10 available
Ships Today
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Jeep Cherokee 2001-1984
- Wagoneer 1990-1984
- Position: Rear
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Upper Mount Type: Bar Pin
- Lower Mount Type: Eye 16mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 25.93
- Collapsed Length (IN): 15.91
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 404.0
- Extended Length (MM): 658.5
33-151663 Shock Absorber Features:
Shocks Designed for Lifted Vehicles
Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.
Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.31 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 16mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.91 in.
Upper Mount TypeBar Pin
SeriesB8 5100
Travel Length10.02 in.
Extended Length25.93 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-151663
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
