Vehicle Info NeededBILSTEINPART NUMBER: 132-33-185576

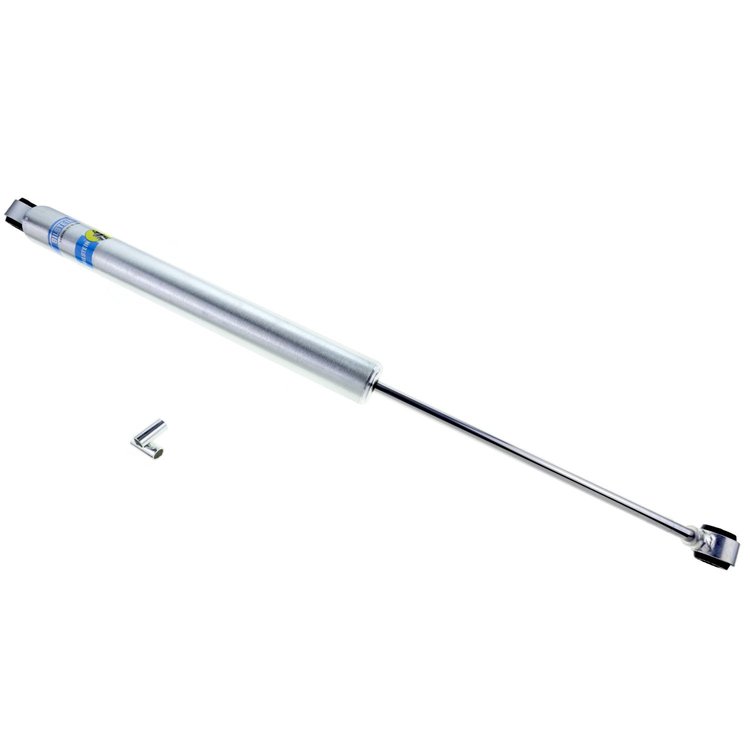

33-185576 B8 5125 Shock Absorber
$12000
More than 10 available
Ships on Sep 08, 2026
Lowest Price Guarantee- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Reservoir: No
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2550
- Extended Length (IN): 34.92
- Collapsed Length (IN): 20.77
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 527.5
- Extended Length (MM): 887.0
- Compression @0.52M/S: 700
- Collapsed Length (IN) Rounded: 21
- Extended Length (IN) Rounded: 35
- Mount Type: Eye-to-Eye
33-185576 Shock Absorber Features:
Performance Shocks for Custom Applications
Bilstein engineered the B8 5125 Shock Absorber for custom, specialty, or modified applications that vary away from direct OE mounting. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually, choose from different lengths, rebound, and compression measurements that most suit your vehicle needs.
Part TypeShock Absorber
Product LineBilstein B8 5125 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight6.11 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)20.77 in.
Upper Mount TypeEye 5/8in
SeriesB8 5125
Mount TypeEye-to-Eye
Travel Length14.14 in.
Extended Length34.91 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-185576
Package Qty1
Package TypeEA
