Vehicle Info NeededBILSTEINPART NUMBER: 132-33-185606

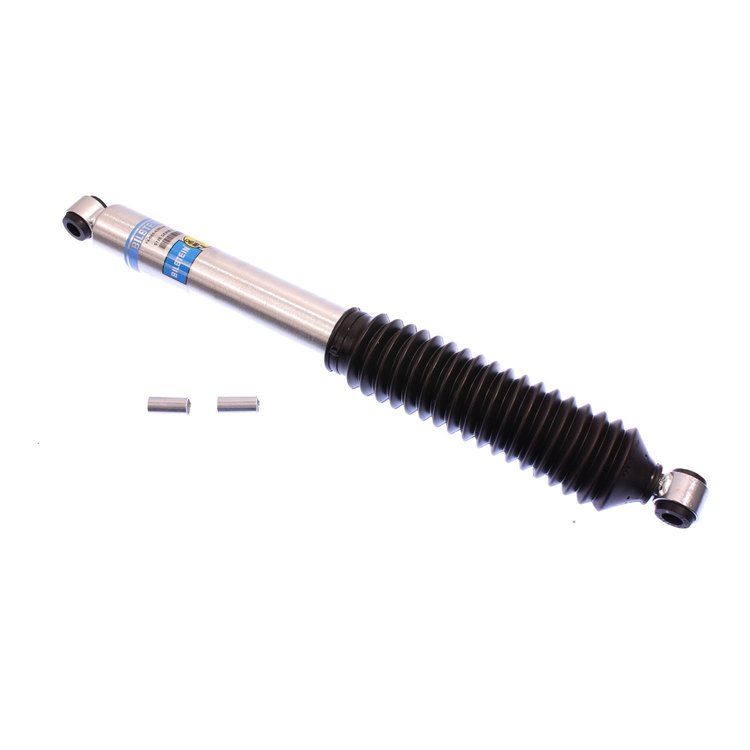

33-185606 B8 5125 Suspension Shock Absorber; 1959-1983 Jeep CJ5, 1966-1968 CJ5A, 1976-1986 CJ7, 1960-1982 Toyota Land Cruiser
$12000
Ships on Nov 03, 2026
Lowest Price Guarantee- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Jeep CJ5 1983-1959
- CJ5A 1968-1966
- CJ7 1986-1976
- Toyota Land Cruiser 1982-1960
- Land Cruiser 1982-1960
- Position: Front and Rear
- Boot Included: Black Bellows
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2550
- Extended Length (IN): 22.58
- Collapsed Length (IN): 14.13
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 359.0
- Extended Length (MM): 573.5
- Compression @0.52M/S: 700
- Collapsed Length (IN) Rounded: 14
- Extended Length (IN) Rounded: 23
- Mount Type: Eye-to-Eye
33-185606 Shock Absorber Features:
Performance Shocks for Custom Applications
Bilstein engineered the B8 5125 Shock Absorber for custom, specialty, or modified applications that vary away from direct OE mounting. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually, choose from different lengths, rebound, and compression measurements that most suit your vehicle needs.
Part TypeShock Absorber
Product LineBilstein B8 5125 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.63 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)14.13 in.
Upper Mount TypeEye 5/8in
SeriesB8 5125
Mount TypeEye-to-Eye
Travel Length8.43 in.
Extended Length22.57 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-185606
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
