Vehicle Info NeededBILSTEINPART NUMBER: 132-33-186542

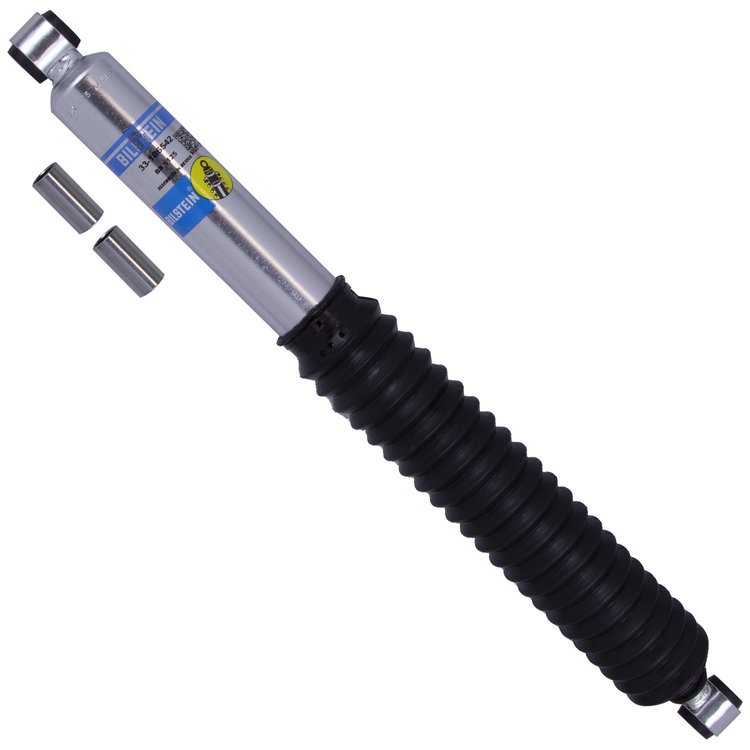

33-186542 B8 5125 Suspension Shock Absorber Fits Select Ford/Jeep/Toyota
$12000
More than 10 available
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 5125 - Shock Absorber
- Select 1959-1991 Ford/Jeep/Toyota Models
- 46mm Monotube Shock Absorber
- Position: Front and Rear
33-186542 Shock Absorber Features:
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2550
- Extended Length (IN): 24.35
- Collapsed Length (IN): 15.12
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 384.0
- Extended Length (MM): 618.5
- Compression @0.52M/S: 700
- Collapsed Length (IN) Rounded: 15
- Extended Length (IN) Rounded: 24
- Mount Type: Eye-to-Eye
Performance Shocks for Custom Applications
Bilstein engineered the B8 5125 Shock Absorber for custom, specialty, or modified applications that vary away from direct OE mounting. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually, choose from different lengths, rebound, and compression measurements that most suit your vehicle needs.
Part TypeShock Absorber
Product LineBilstein B8 5125 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.81 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.12 in.
Upper Mount TypeEye 5/8in
SeriesB8 5125
Mount TypeEye-to-Eye
Travel Length9.22 in.
Extended Length24.34 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-186542
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
