Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

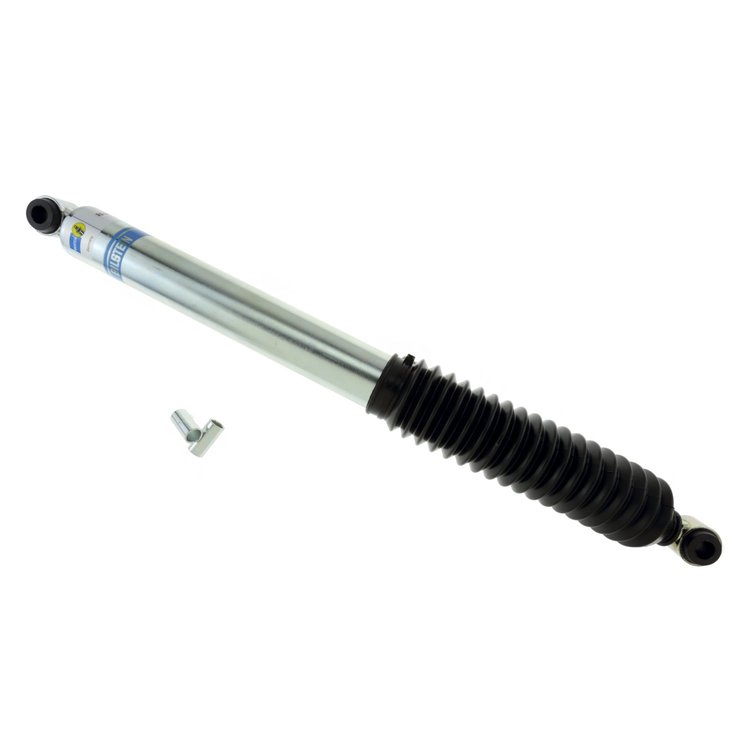

- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Spring Seat Included: No
- Reservoir: No
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 2015
- Extended Length (IN): 25.00
- Collapsed Length (IN): 15.41
- Collapsed Length (MM): 391.4
- Extended Length (MM): 635.0
- Compression @0.52M/S: 875
33-214672 Shock Absorber Features:
Performance Shocks for Custom Applications
Bilstein engineered the B8 5125 Shock Absorber for custom, specialty, or modified applications that vary away from direct OE mounting. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually, choose from different lengths, rebound, and compression measurements that most suit your vehicle needs.
Part TypeShock Absorber
Product LineBilstein B8 5125 Shock Absorbers
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight4.95 PG
Part CategoryPerformance Parts
SeriesB8 5125
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Travel Length9.59 in.
Shaft Diameter14mm
Extended Length25.00 in.
Collapsed Length (In)15.41 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeEye 5/8in
Vendor Part NumberB533-214672
Package Qty1
Package TypeEA
