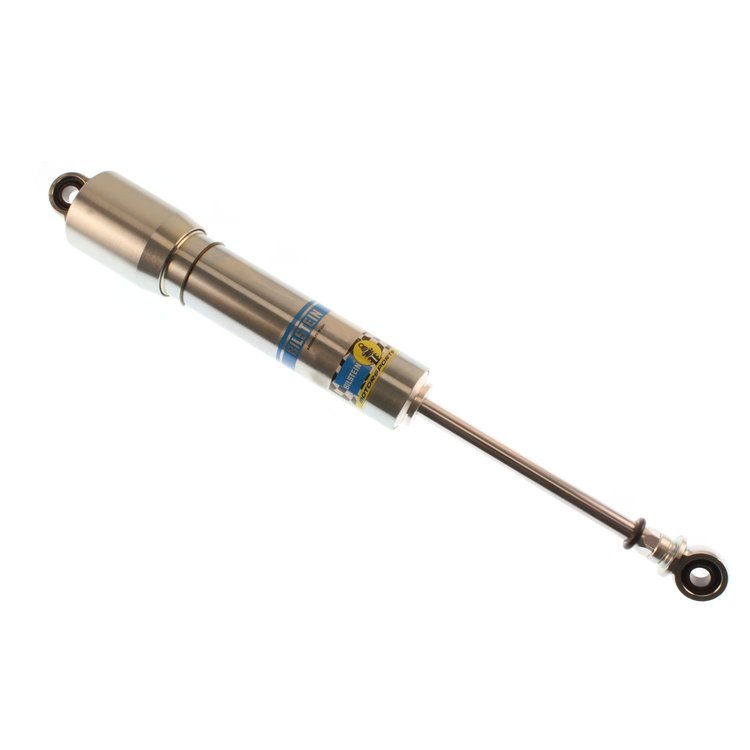

33-221908 XVS Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Rebound @0.52M/S: 1120
Extended Length (IN): 23.64
Collapsed Length (IN): 15.24
Body Diameter (ID): 46mm
Collapsed Length (MM): 387.0
Extended Length (MM): 600.5
Compression @0.52M/S: 1190
Valving Identifier: 4040
Piston Type: Digressive
Body Material: Steel

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length26.8

Weight5.25 PG

Part CategoryPerformance Parts

Boot IncludedNo

Lower Mount Type1/2in Heim

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)15.24 in.

Upper Mount Type1/2in Heim

SeriesXVS Series

Body MaterialSteel

Travel Length8.40 in.

Extended Length23.64 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB533-221908

Package Qty1

Package TypeEA
