Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

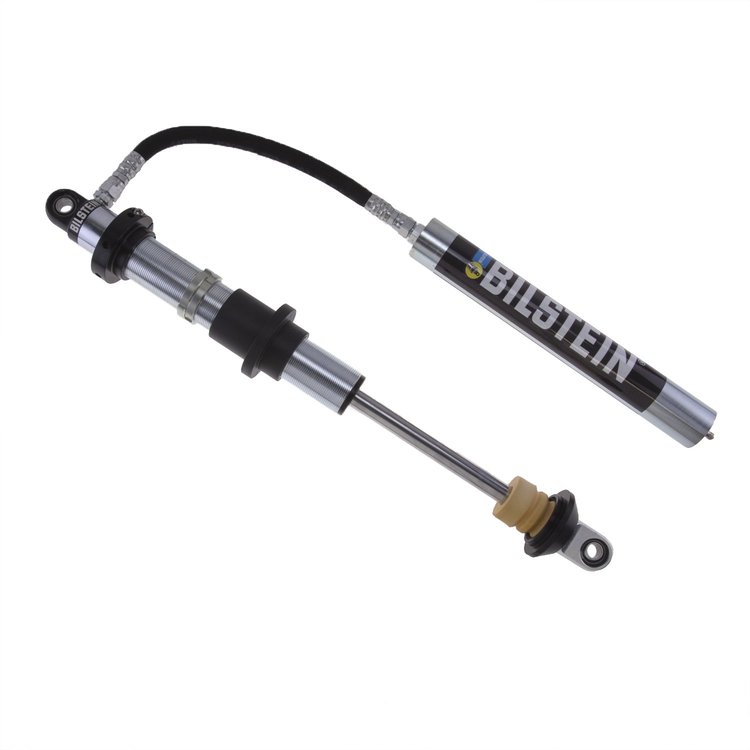

- B8 8125 - Shock Absorber
- 46mm Coilover w/ Hardware
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye .5x1.5in
- Lower Mount Type: Eye .5x1.5in
- Spring Seat Included: Yes
- Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.
- Reservoir: Yes
- Body Design: Threaded Body Screw Top (Coilover)
- Rebound @0.52M/S: 2550
- Extended Length (IN): 27.00
- Collapsed Length (IN): 17.00
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 431.8
- Extended Length (MM): 685.8
- Compression @0.52M/S: 1000
- Collapsed Length (IN) Rounded: 17
- Extended Length (IN) Rounded: 27
- Optional Reservoir Clamp: B4-KT1-Z315A00
- Mount Type: Eye-to-Eye
33-225524 Shock Absorber Features:
Part TypeCoilover Shock
BrandBILSTEIN
Package Height4.5
Package Width7.5
Package Length36.0
Weight15.15 PG
Part CategoryPerformance Parts
SeriesB8 8125
Lower Mount TypeEye .5x1.5in
Mount TypeEye-to-Eye
Travel Length10.00 in.
Piston Diameter46mm
Extended Length27.00 in.
Collapsed Length (In)17.00 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeEye .5x1.5in
Vendor Part NumberB533-225524
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
