Vehicle Info NeededBILSTEINPART NUMBER: 132-33-230313

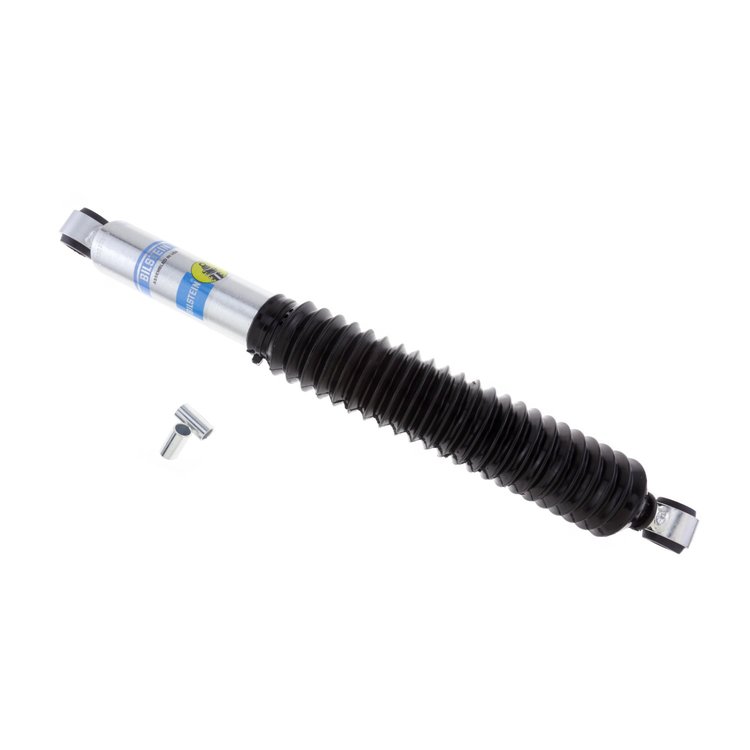

33-230313 B8 5125 Suspension Shock Absorber; 1976-1983 Jeep CJ5, 1976-1986 CJ7
$12000
More than 10 available
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Jeep CJ5 1983-1976
- CJ7 1986-1976
- Position: Rear
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Reservoir: No
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Upper Mount Type: Eye 5/8in
- Lower Mount Type: Eye 5/8in
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 1600
- Extended Length (IN): 21.67
- Collapsed Length (IN): 13.66
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 347.0
- Extended Length (MM): 550.5
- Compression @0.52M/S: 575
- Collapsed Length (IN) Rounded: 14
- Extended Length (IN) Rounded: 22
- Mount Type: Eye-to-Eye
33-230313 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.45 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)13.66 in.
Upper Mount TypeEye 5/8in
SeriesB8 5125
Mount TypeEye-to-Eye
Travel Length8.04 in.
Extended Length21.70 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-230313
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
