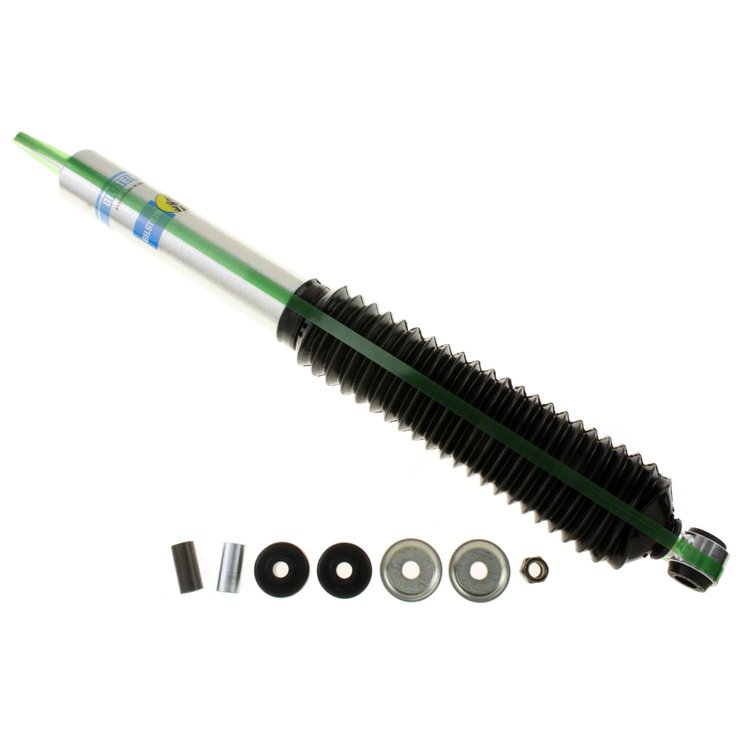

33-230412 B8 5125 Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Rebound @0.52M/S: 3695
Extended Length (IN): 24.38
Collapsed Length (IN): 15.19
Body Diameter (ID): 46mm
Collapsed Length (MM): 385.8
Extended Length (MM): 619.3
Compression @0.52M/S: 840
Collapsed Length (IN) Rounded: 15
Extended Length (IN) Rounded: 24
Mount Type: Stem-to-Eye

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length26.8

Weight5.29 PG

Part CategoryPerformance Parts

Boot IncludedBlack Bellows

Lower Mount TypeEye 5/8in

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)15.19 in.

Upper Mount TypeStem

SeriesB8 5125

Mount TypeStem-to-Eye

Travel Length9.22 in.

Extended Length24.41 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB533-230412

Package Qty1

Package TypeEA
