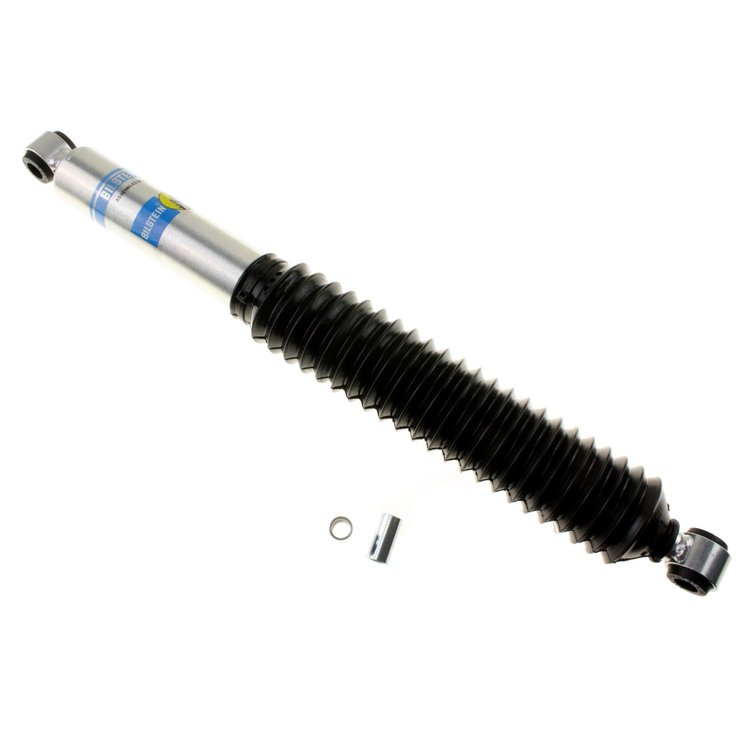

33-230443 B8 5125 Shock Absorber

Name: 33-230443 B8 5125 Shock Absorber
Brand: BILSTEIN
SKU: 132-33-230443
Price: 120.00 USD
Availability: InStock

^$120⁰⁰

More than 10 available

Ships on Sep 08, 2026

Lowest Price Guarantee

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Spring Seat Included: No
Reservoir: No
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Rebound @0.52M/S: 1600
Extended Length (IN): 22.54
Collapsed Length (IN): 14.13
Body Diameter (ID): 46mm
Collapsed Length (MM): 359.0
Extended Length (MM): 572.5
Compression @0.52M/S: 575
Collapsed Length (IN) Rounded: 14
Extended Length (IN) Rounded: 23
Mount Type: Eye-to-Eye

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length26.8

Weight4.61 PG

Part CategoryPerformance Parts

Boot IncludedBlack Bellows

Lower Mount TypeEye 5/8in

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)14.13 in.

Upper Mount TypeEye 5/8in

SeriesB8 5125

Mount TypeEye-to-Eye

Travel Length8.43 in.

Extended Length22.57 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB533-230443

Package Qty1

Package TypeEA
