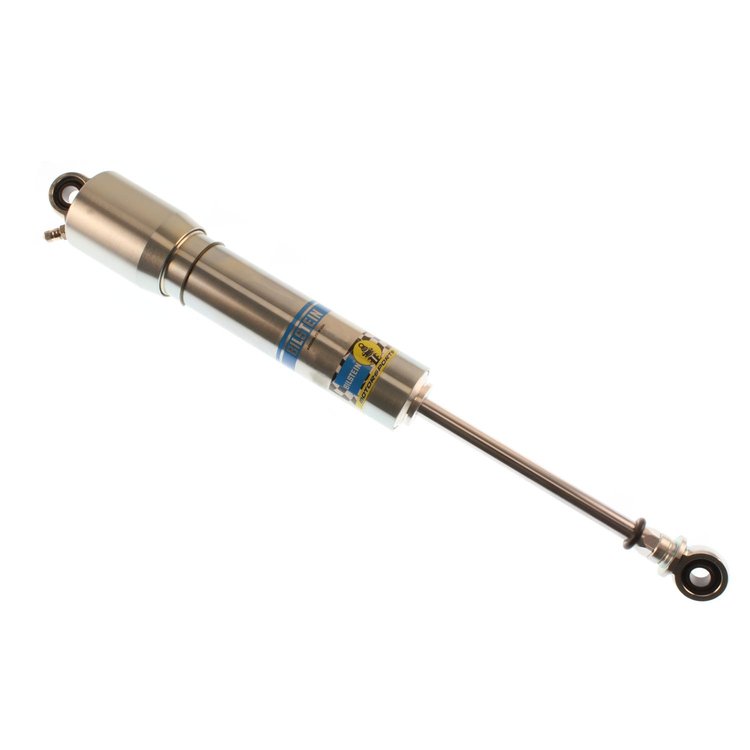

33-233383 XVS-S Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Spring Seat Included: No
Rebound @0.52M/S: 1895
Extended Length (IN): 20.04
Collapsed Length (IN): 13.35
Collapsed Length (MM): 339.0
Extended Length (MM): 509.0
Compression @0.52M/S: 960
Valving Identifier: 6040
Position: Front Left

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length26.8

Weight7.0 PG

Part CategoryPerformance Parts

SeriesXVS-S Series

Boot IncludedNo

Lower Mount Type1/2in Heim

PositionFront Left

Travel Length6.69 in.

Shaft Diameter14mm

Extended Length20.04 in.

Collapsed Length (In)13.35 in.

Internal DesignMonotube

FinishZinc Plated

Upper Mount Type1/2in Heim

Vendor Part NumberB533-233383

Package Qty1

Package TypeEA
