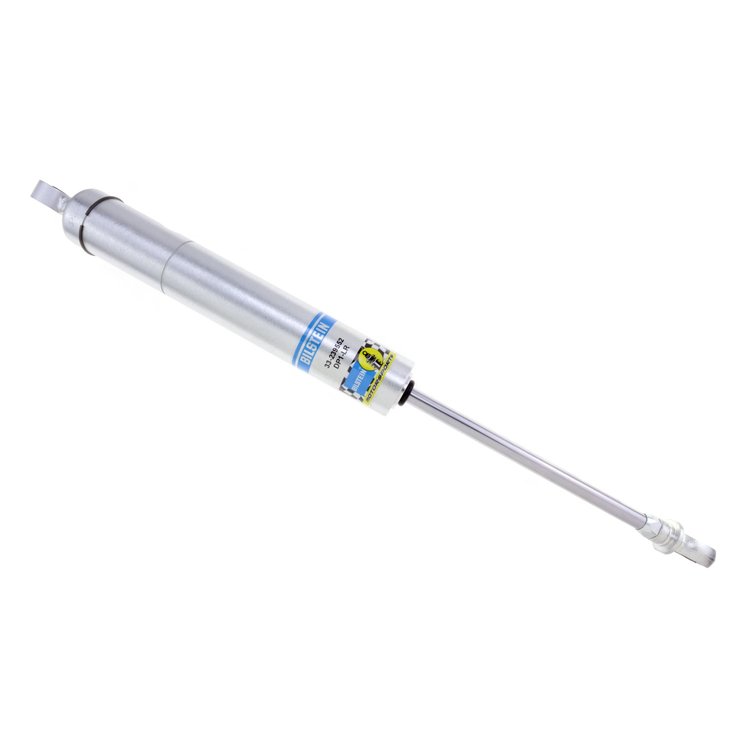

33-239552 SZ Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Extended Length (IN): 23.52
Collapsed Length (IN): 14.88
Body Diameter (ID): 46mm
Collapsed Length (MM): 378.0
Extended Length (MM): 597.5
Valving Identifier: DP1-LR
Piston Type: Digressive
Body Material: Steel
Rebound @0.26M/S: 365
Compression @0.26M/S: 1115

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length26.8

Weight4.34 PG

Part CategoryPerformance Parts

Boot IncludedNo

Lower Mount Type1/2in Heim

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)14.88 in.

Upper Mount Type1/2in Heim

SeriesSZ Series

Body MaterialSteel

Travel Length8.64 in.

Extended Length23.52 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB533-239552

Package Qty1

Package TypeEA
