Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

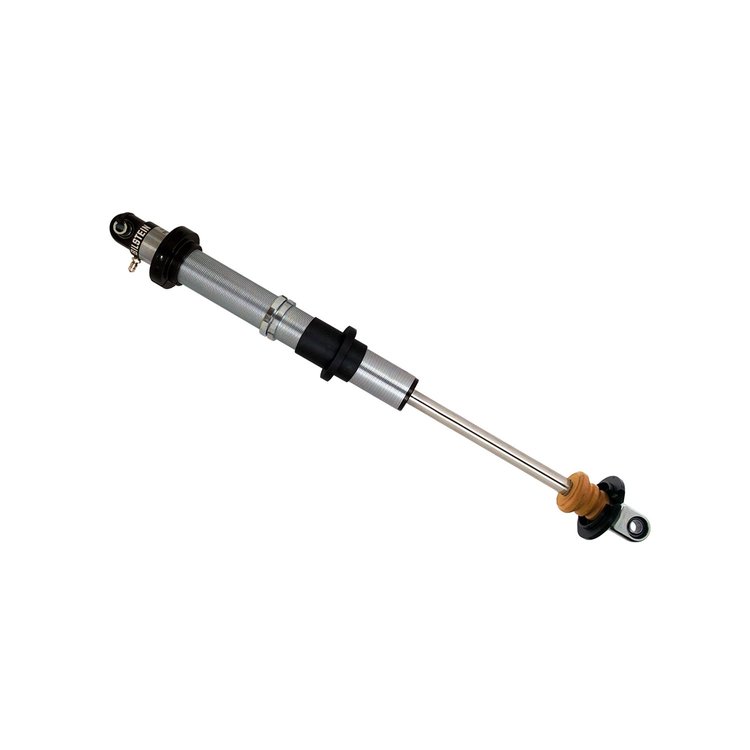

- M 9200 (Coil Carrier) - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: N/A
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye .5x1.5in
- Lower Mount Type: Eye .5x1.5in
- Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- Spring Seat Included: No
- Reservoir: Yes
- Body Design: Threaded Body (Coilover)
- Rebound @0.52M/S: Custom
- Extended Length (IN): 31.50
- Collapsed Length (IN): 19.50
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 495.3
- Extended Length (MM): 800.1
- Compression @0.52M/S: Custom
- Collapsed Length (IN) Rounded: 20
- Extended Length (IN) Rounded: 32
- Optional Reservoir Clamp: N/A
- Mount Type: Eye-to-Eye
33-243542 Shock Absorber Features:
Part TypeCoilover Shock
BrandBILSTEIN
Package Height4.5
Package Width7.5
Package Length36.0
Weight12.61 PG
Part CategoryPerformance Parts
SeriesM 9200 (Coil Carrier)
Boot IncludedN/A
Lower Mount TypeEye .5x1.5in
Mount TypeEye-to-Eye
Travel Length12.00 in.
Piston Diameter46mm
Extended Length31.50 in.
Collapsed Length (In)19.50 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeEye .5x1.5in
Vendor Part NumberB533-243542
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
