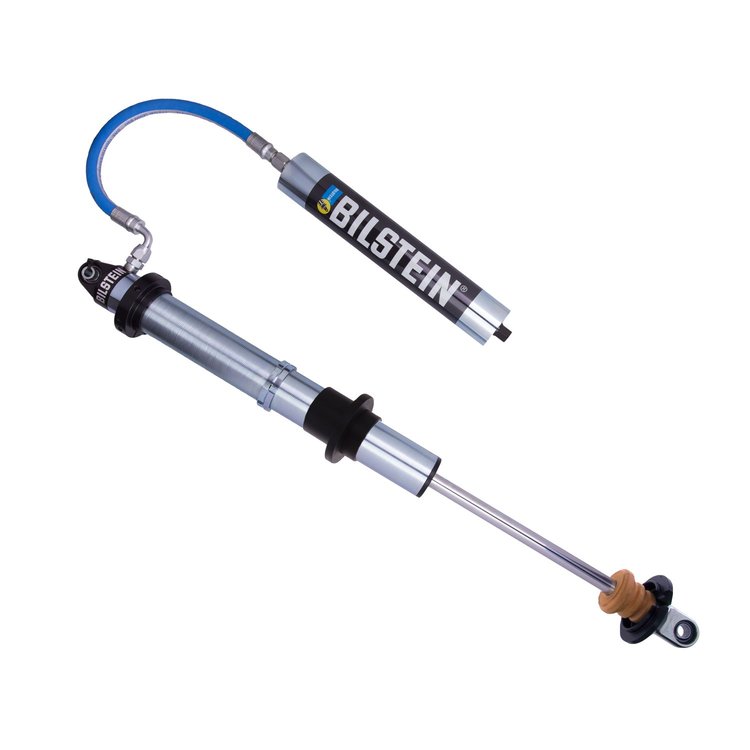

33-243795 M 9200 (Coilover) Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Spring Seat Included: No
Reservoir: Yes
Body Design: Threaded Body (Coilover)
Rebound @0.52M/S: 3550
Extended Length (IN): 38.50
Collapsed Length (IN): 24.50
Body Diameter (ID): 60mm
Collapsed Length (MM): 622.3
Extended Length (MM): 977.9
Compression @0.52M/S: 1000
Collapsed Length (IN) Rounded: 25
Extended Length (IN) Rounded: 39
Optional Reservoir Clamp: N/A
Mount Type: Eye-to-Eye

Part TypeCoilover Shock

BrandBILSTEIN

Package Height4.5

Package Width7.5

Package Length36.0

Weight25.6 PG

Part CategoryPerformance Parts

SeriesM 9200 (Coilover)

Boot IncludedN/A

Lower Mount TypeEye .5x1.5in

Mount TypeEye-to-Eye

Travel Length14.00 in.

Piston Diameter60mm

Extended Length38.50 in.

Collapsed Length (In)24.50 in.

Internal DesignMonotube

FinishZinc Plated

Upper Mount TypeEye .5x1.5in

Vendor Part NumberB533-243795

Package Qty1

Package TypeEA
