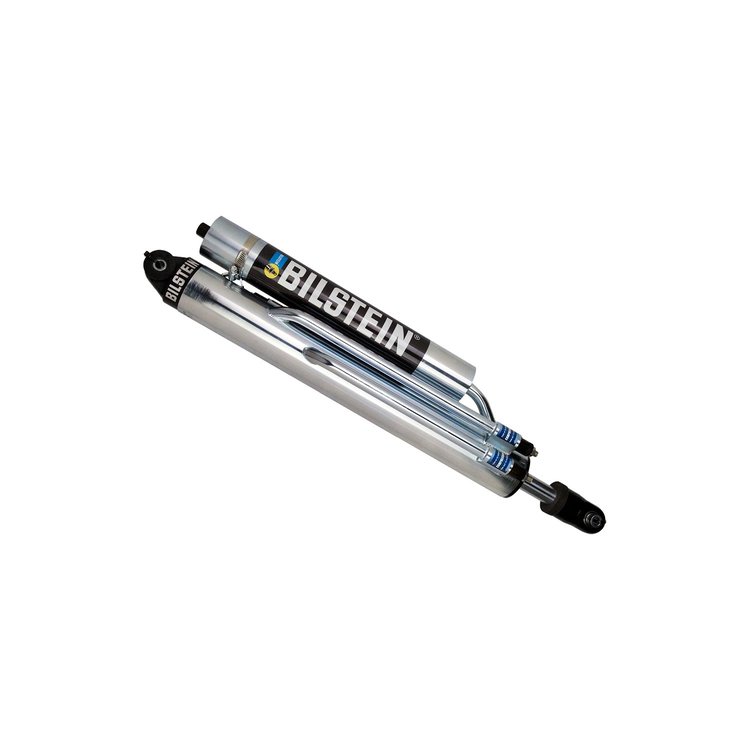

33-250809 M 9200 (Bypass) Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Spring Seat Included: No
Reservoir: Yes
Body Design: 4-Tube Bypass Screw Top
Rebound @0.52M/S: Custom
Extended Length (IN): 42.50
Collapsed Length (IN): 26.50
Body Diameter (ID): 70mm
Collapsed Length (MM): 673.1
Extended Length (MM): 1079.5
Compression @0.52M/S: Custom
Collapsed Length (IN) Rounded: 27
Extended Length (IN) Rounded: 43
Optional Reservoir Clamp: N/A
Mount Type: Eye-to-Eye
Position: Left

Part TypeShock Absorber

BrandBILSTEIN

Package Height9.25

Package Width11.0

Package Length36.25

Weight30.0 PG

Part CategoryPerformance Parts

Boot IncludedN/A

Lower Mount TypeEye .5x1.5in

PositionLeft

Shaft Diameter1-1/8 in.

Piston Diameter70mm

Collapsed Length (In)26.50 in.

Upper Mount TypeEye .5x1.5in

SeriesM 9200 (Bypass)

Mount TypeEye-to-Eye

Travel Length16.00 in.

Extended Length42.50 in.

Internal DesignMonotube

FinishZinc Plated

Vendor Part NumberB533-250809

Package Qty1

Package TypeEA
