Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

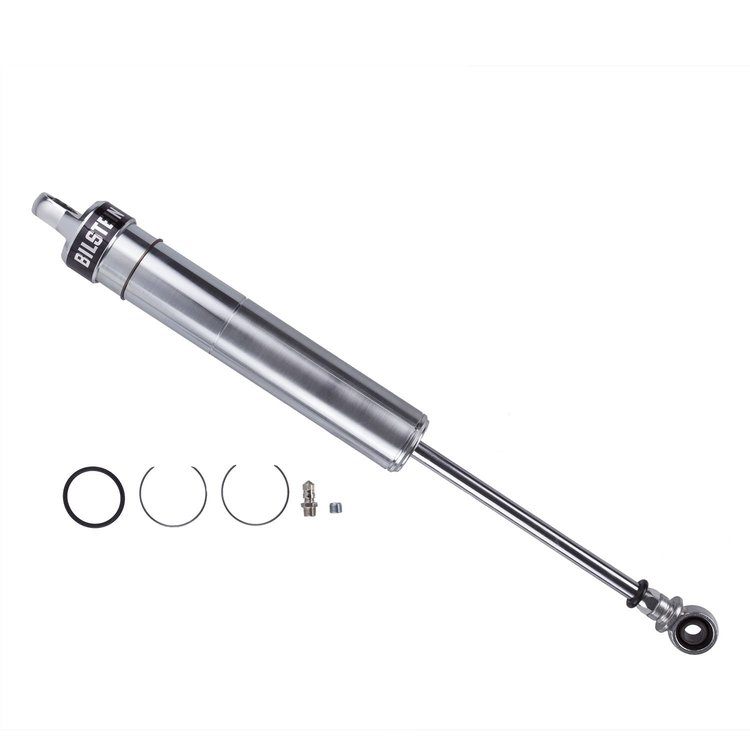

- SNS2 Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body Screw Top (Non-coilover)
- Extended Length (IN): 21.80
- Collapsed Length (IN): 14.03
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 356.3
- Extended Length (MM): 553.8
- Valving Identifier: Linear Dry Kit (no valving)
- Piston Type: Linear
- Body Material: Steel
33-260075 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight3.99 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount Type1/2in Heim
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)14.03 in.
Upper Mount Type1/2in Heim
SeriesSNS2 Series
Body MaterialSteel
Travel Length7.77 in.
Extended Length21.80 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-260075
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
