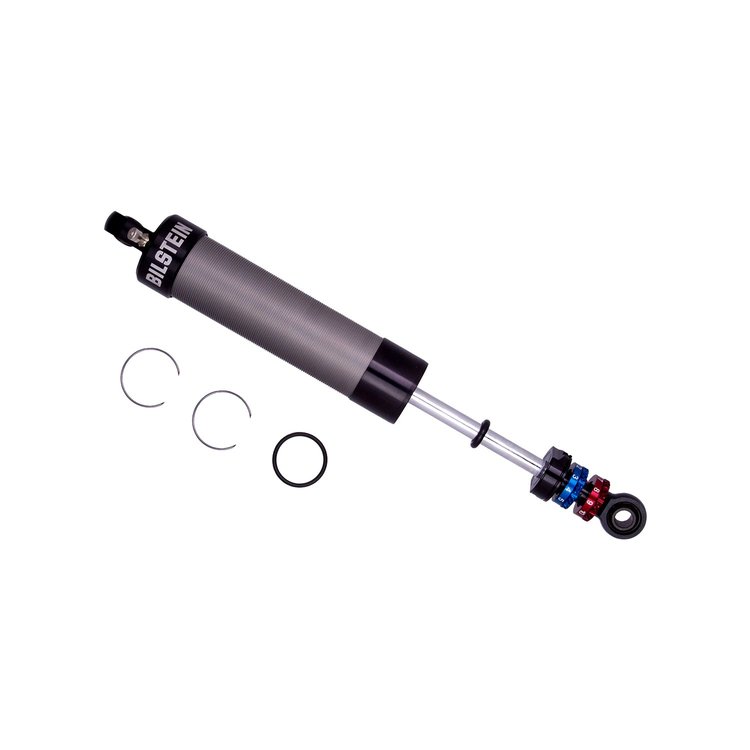

33-262017 AS2 Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.
Spring Seat Included: No
Adjustable Damping: Double Adjustable – Compression and Rebound
Body Design: Threaded Body Screw Top (Coilover)
Extended Length (IN): 14.21
Collapsed Length (IN): 10.87
Body Diameter (ID): 46mm
Collapsed Length (MM): 276.0
Extended Length (MM): 360.9
Valving Identifier: Digressive Dry Kit (no valving)
Piston Type: Digressive
Body Material: Aluminum

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length22.45

Weight7.0 PG

Part CategoryPerformance Parts

Boot IncludedNo

Lower Mount Type1/2in Heim

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)10.87 in.

Upper Mount Type1/2in Heim

SeriesAS2 Series

Body MaterialAluminum

Travel Length3.34 in.

Extended Length14.21 in.

Adjustable DampingDouble Adjustable – Compression and Rebound

Internal DesignMonotube

FinishClear Anodized

Vendor Part NumberB533-262017

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
