Vehicle Info NeededBILSTEINPART NUMBER: 132-33-268996

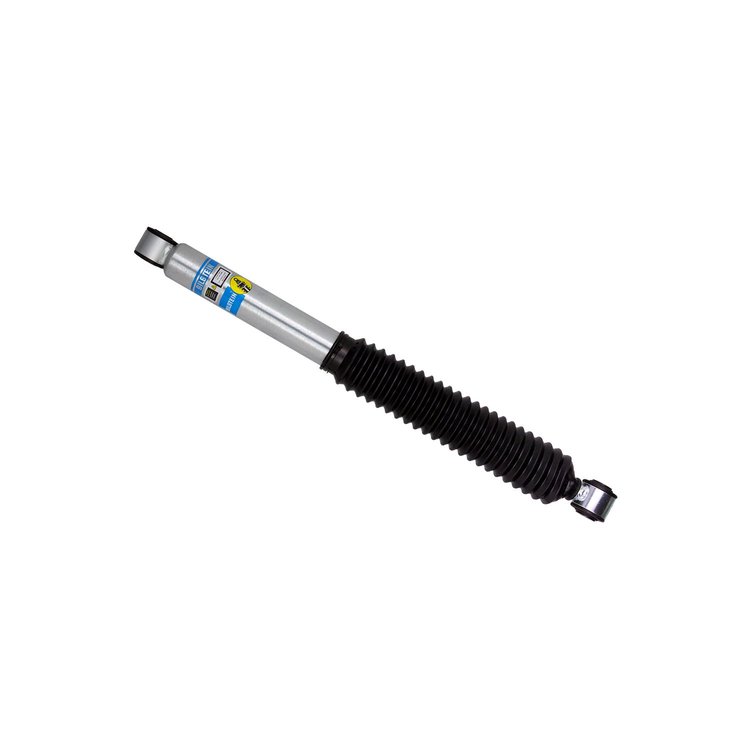

33-268996 B8 5100 Suspension Shock Absorber; 2016-2024 Nissan TITAN XD
$12300
More than 10 available
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Nissan Titan XD
- Position: Rear
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Upper Mount Type: Eye 14mm
- Lower Mount Type: Eye 14mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 25.81
- Collapsed Length (IN): 16.20
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 411.5
- Extended Length (MM): 655.7
33-268996 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.2 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.20 in.
Upper Mount TypeEye 14mm
SeriesB8 5100
Travel Length9.59 in.
Extended Length25.81 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-268996
Package Qty1
Package TypeEA
