Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

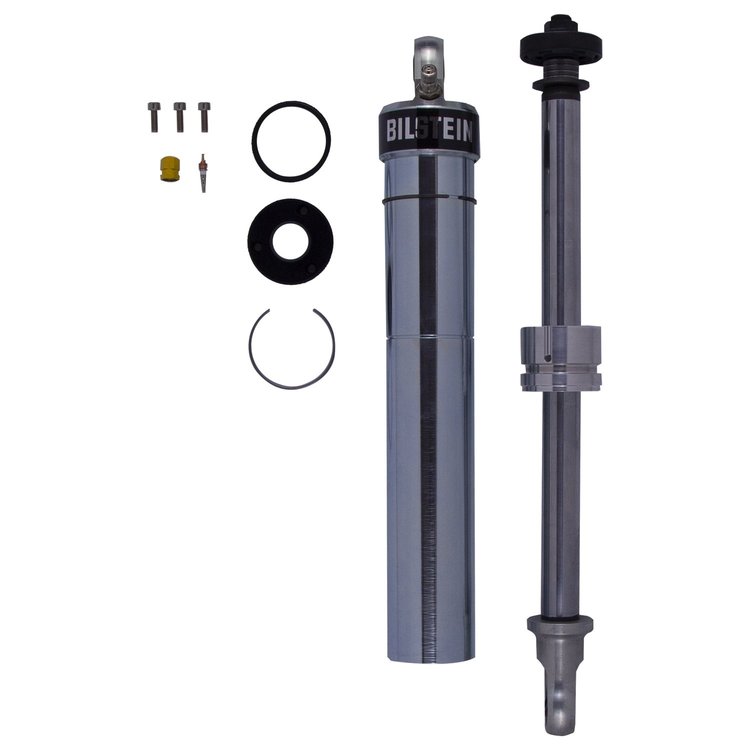

- EM46 Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body Screw Top (Non-coilover)
- Extended Length (IN): 25.24
- Collapsed Length (IN): 15.24
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 387.0
- Extended Length (MM): 641.0
- Valving Identifier: Digressive Dry Kit (no valving)
- Piston Type: Digressive
- Body Material: Steel
33-286884 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.6 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount Type1/2in Heim
Shaft Diameter22mm
Piston Diameter46mm
Collapsed Length (In)15.24 in.
Upper Mount Type1/2in Heim
SeriesEM46 Series
Body MaterialSteel
Travel Length10.00 in.
Extended Length25.24 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB533-286884
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
