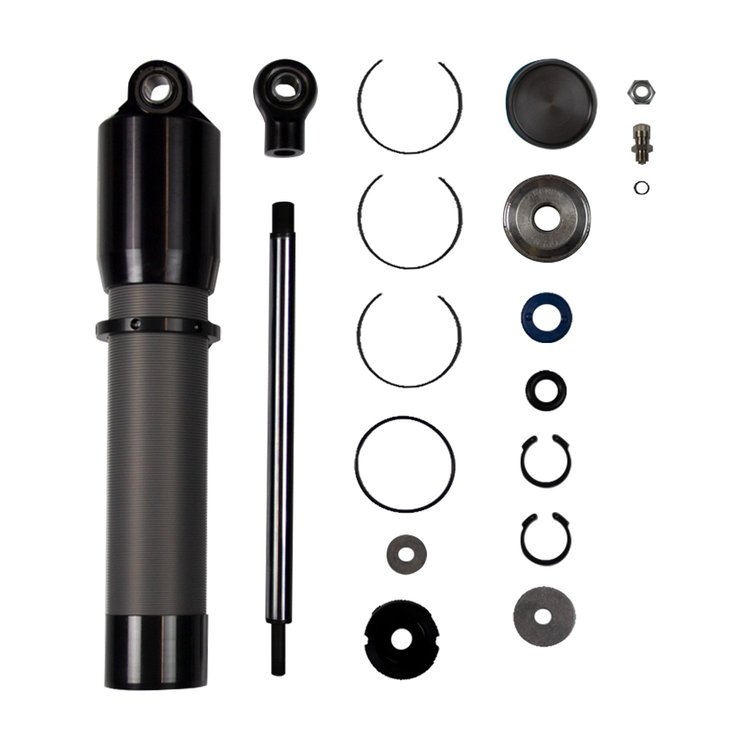

33-314587 XVA Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Extended Length (IN): 18.56
Collapsed Length (IN): 12.81
Body Diameter (ID): 46mm
Collapsed Length (MM): 325.5
Extended Length (MM): 471.5
Valving Identifier: Dry Kit (no valving)
Piston Type: Sold Separately
Body Material: Aluminum

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.95

Package Width2.95

Package Length22.45

Weight2.69 PG

Part CategoryPerformance Parts

Boot IncludedNo

Lower Mount Type1/2in Heim

Shaft Diameter14mm

Piston Diameter46mm

Collapsed Length (In)12.81 in.

Upper Mount Type1/2in Heim

SeriesXVA Series

Body MaterialAluminum

Travel Length5.75 in.

Extended Length18.56 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishClear Anodized

Vendor Part NumberB533-314587

Package Qty1

Package TypeEA
