Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

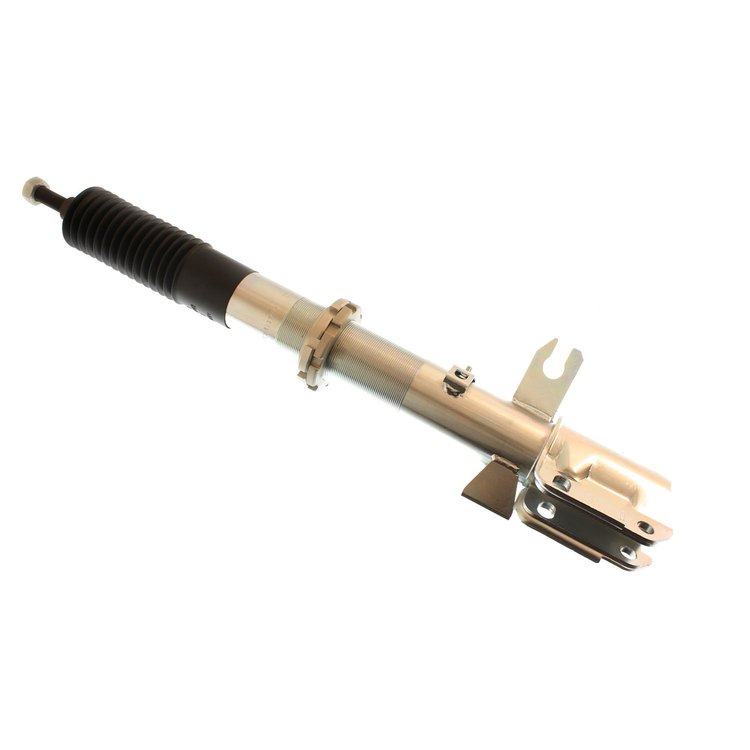

- Motorsports - Suspension Strut Assembly
- 36mm Monotube Strut Assembly
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Bracket
- Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
- Spring Seat Included: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Threaded Body (Coilover)
- Extended Length (IN): 20.53
- Collapsed Length (IN): 16.61
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 422.0
- Extended Length (MM): 521.5
- Valving Identifier: N/A
- Piston Type: Digressive
- Body Material: Steel
- Rebound @0.26M/S: 5370
- Compression @0.26M/S: 1440
- Position: Front
35-593744 Suspension Strut Assembly Features:
Part TypeStrut
BrandBILSTEIN
Package Height6.1
Package Width6.1
Package Length26.8
Weight10.27 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeBracket
PositionFront
Shaft Diameter11mm
Piston Diameter46mm
Collapsed Length (In)16.61 in.
Upper Mount TypeStem
SeriesMotorsports
Body MaterialSteel
Travel Length3.92 in.
Extended Length20.53 in.
Adjustable DampingNon-Adjustable
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB535-593744
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
