BILSTEINPART NUMBER: 132-41-242513

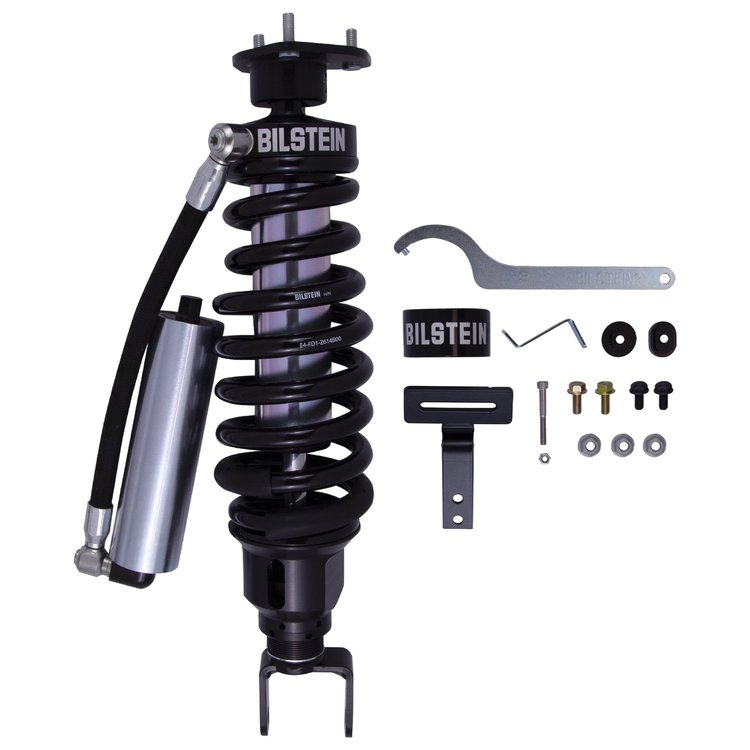

41-242513 B8 8112 (ZoneControl CR) Front Left Corner Module; 2019-2021 Ram 1500
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 8112 (ZoneControl CR) - Front Left Corner Module
- 60mm Front Left Corner Module
- Ram 1500 2021-2019
- Boot Included: No
- Internal Design: Monotube
- Finish: Dampers: Zinc Plated/Springs: Black
- Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
- Upper Mount Type: Special
- Lower Mount Type: Clevis
- Spring Seat Included: Yes
- Reservoir: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Coilover)
- Extended Length (IN): 22.39
- Collapsed Length (IN): 16.90
- Body Diameter (ID): 60mm
- Collapsed Length (MM): 429.3
- Extended Length (MM): 562.8
- Body Material: Steel
41-242513 Shock Absorber and Coil Spring Assembly Features:
Part TypeStrut and Coil Spring Assembly
BrandBILSTEIN
Package Height8.88
Package Width11.88
Package Length33.5
Weight38.9 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeClevis
Piston Diameter60mm
Collapsed Length (In)16.90 in.
Upper Mount TypeSpecial
SeriesB8 8112 (ZoneControl CR)
Body MaterialSteel
Extended Length22.39 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc/Black
Vendor Part NumberB541-242513
Package Qty1
Package TypeEA
