Product Discontinued
BILSTEINPART NUMBER: 132-41-284544

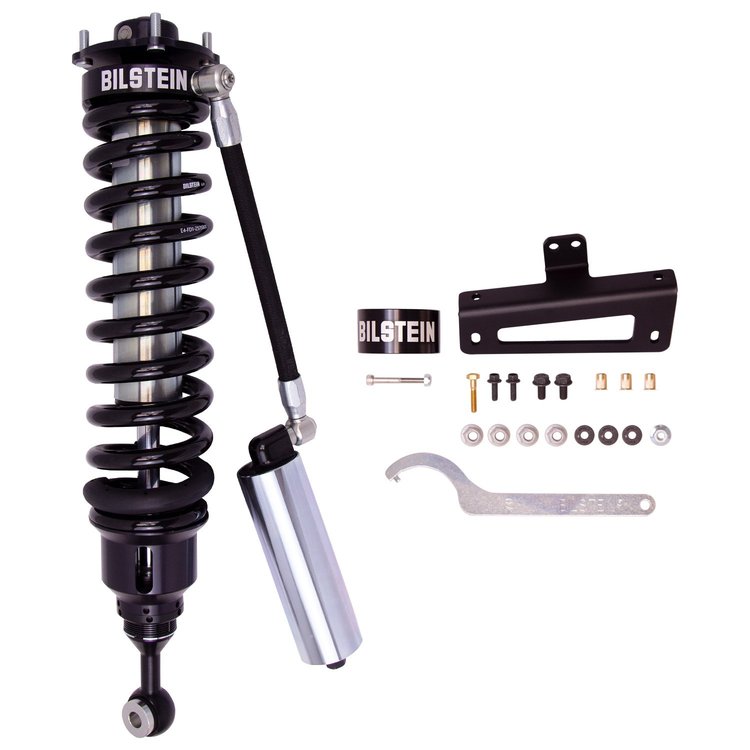

41-284544 B8 8112 (ZoneControl CR) Front Left Corner Module; 2007-2021 Toyota Tundra; Front Left
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 8112 (ZoneControl CR) - Front Left Corner Module
- 60mm Front Left Corner Module
- Toyota Tundra 2021-2007
- Position: Front Left
- Boot Included: No
- Internal Design: Monotube
- Upper Mount Type: Special
- Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
- Finish: Dampers: Zinc Plated/Springs: Black
- Lower Mount Type: Eye 16.1mm
- Spring Seat Included: Yes
- Reservoir: Yes
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Coilover)
- Extended Length (IN): 25.79
- Collapsed Length (IN): 19.43
- Body Diameter (ID): 60mm
- Collapsed Length (MM): 493.6
- Extended Length (MM): 655.1
- Body Material: Steel
- Optional Heavy Load Springs: N/A
- Aftermarket Upper Arms Required: Yes
41-284544 Shock Absorber and Coil Spring Assembly Features:
Part TypeStrut and Coil Spring Assembly
BrandBILSTEIN
Package Height8.88
Package Width11.88
Package Length33.5
Weight41.0 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 16.1mm
Piston Diameter60mm
Collapsed Length (In)19.43 in.
Upper Mount TypeSpecial
SeriesB8 8112 (ZoneControl CR)
Body MaterialSteel
Extended Length25.79 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc/Black
Vendor Part NumberB541-284544
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
