Bilstein 41-326701 Features:

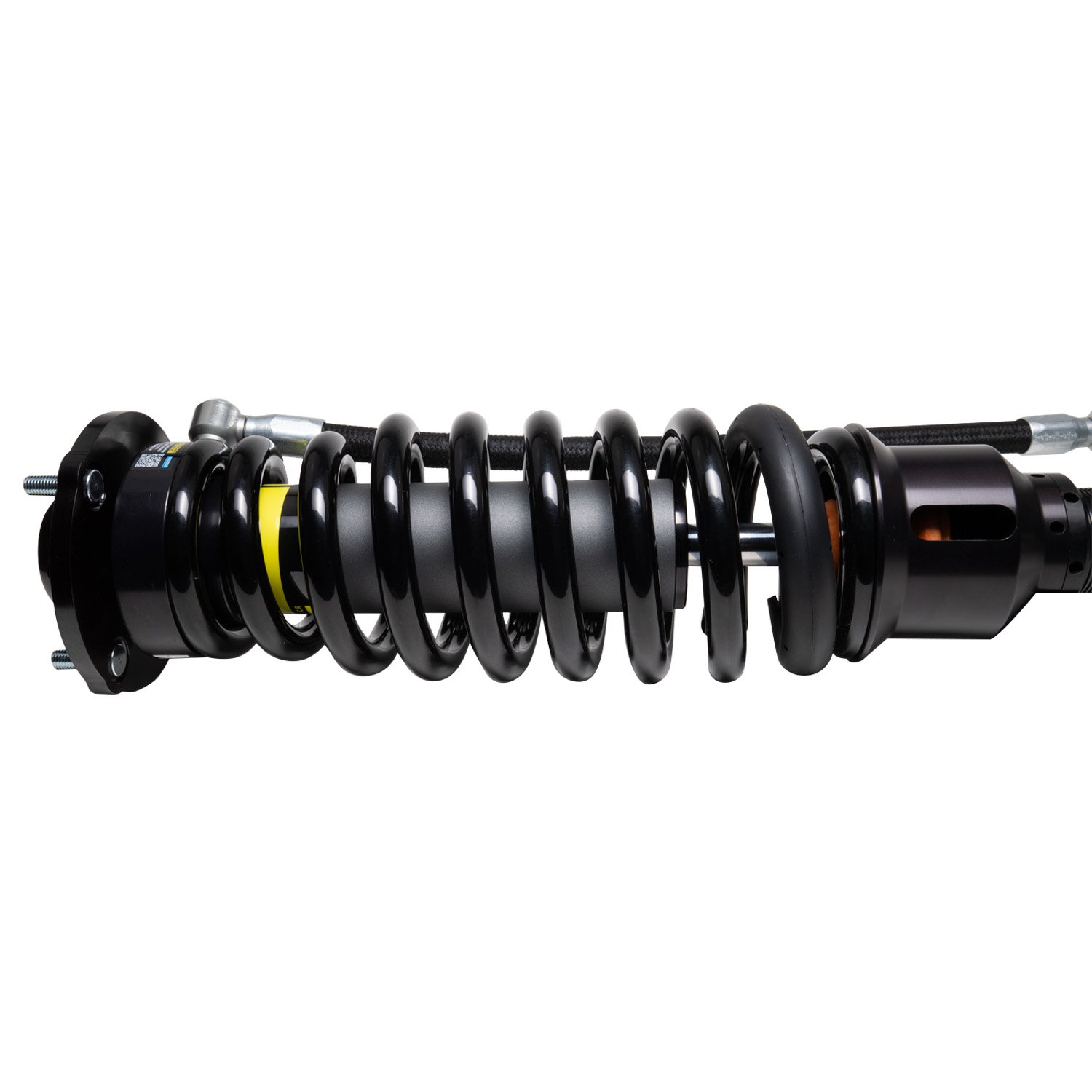

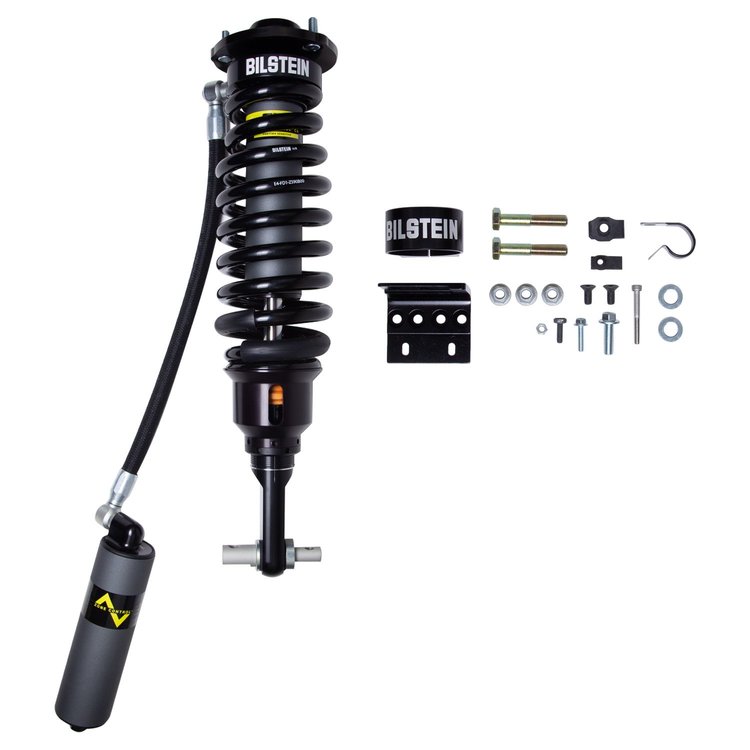

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Spring Seat Included: Yes
• Adjustable Damping: Non-Adjustable
• Aftermarket Upper Arms Required: Yes
• Finish: Dampers: EVO Grey/Springs: Black
• Reservoir: Yes
• Lower Mount Type: Crossbar
• Collapsed Length (IN): 18.45
• Front Main Spring Rate (lbs/in): 500 lbs
• Upper Mount Type: Special
• Extended Length (IN): 23.22
• Body Design: Smooth Body (Coilover)
• Series: B8 8112 (ZoneControl CR)
• Body Material: Steel
• Piston Diameter: 60mm
• Boot Included: No
• Internal Design: Monotube
• Extended Length (MM): 589.8
• Shaft Diameter (mm): 22.0
• Collapsed Length (MM): 468.7
