Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

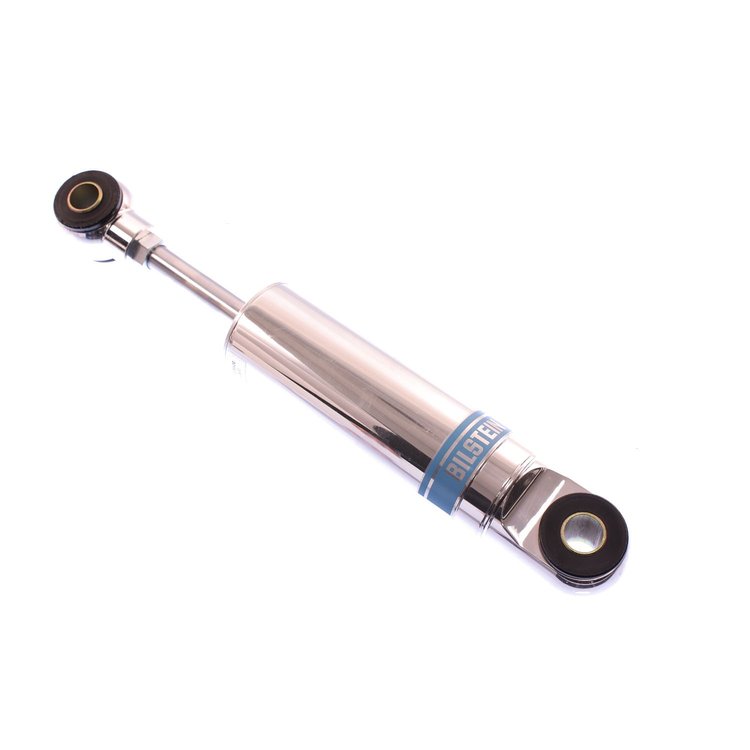

- SA4 Series - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: No
- Internal Design: Monotube
- Finish: Polished Aluminum
- Upper Mount Type: Eye 15.9mm
- Lower Mount Type: Eye 15.9mm
- Bilstein SA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. SA4 Series shock absorbers feature a 46mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Bilstein SA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
- Spring Seat Included: No
- Rebound @0.52M/S: 1350
- Extended Length (IN): 11.95
- Collapsed Length (IN): 9.25
- Collapsed Length (MM): 235.0
- Extended Length (MM): 303.5
- Compression @0.52M/S: 370
- Recommended Mounting Length (IN): 10.50
- Position: Rear
A409120530 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.75
Package Width5.25
Package Length19.75
Weight3.57 PG
Part CategoryPerformance Parts
SeriesSA4 Series
Boot IncludedNo
Lower Mount TypeEye 15.9mm
PositionRear
Extended Length11.95 in.
Collapsed Length (In)9.25 in.
Internal DesignMonotube
FinishPolished Aluminum
Upper Mount TypeEye 15.9mm
Vendor Part NumberB5A409120530
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
