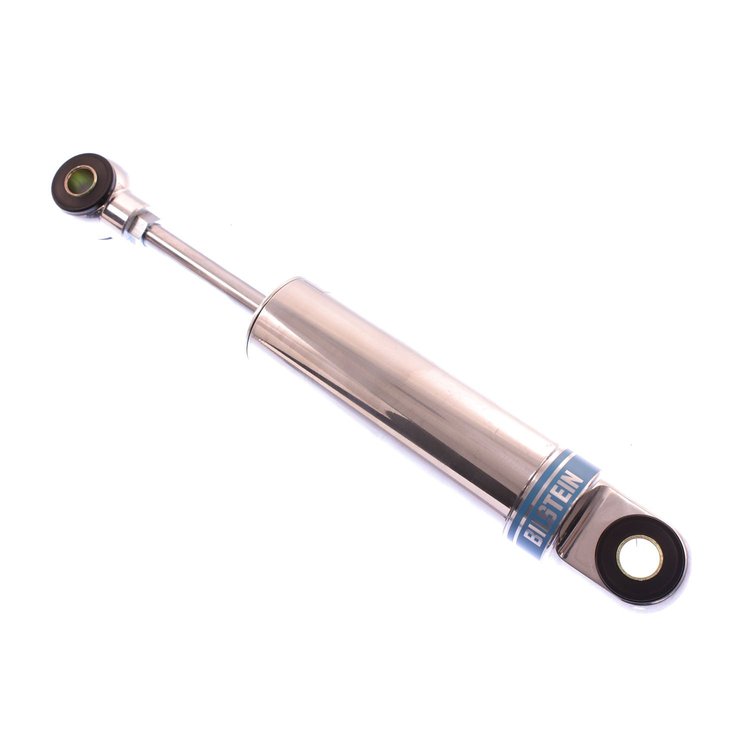

A410130520 SA4 Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein SA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. SA4 Series shock absorbers feature a 46mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Bilstein SA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Spring Seat Included: No
Rebound @0.52M/S: 2200
Extended Length (IN): 13.66
Collapsed Length (IN): 10.18
Collapsed Length (MM): 258.5
Extended Length (MM): 347.0
Compression @0.52M/S: 430
Recommended Mounting Length (IN): 11.50
Position: Rear

Part TypeShock Absorber

BrandBILSTEIN

Package Height2.5

Package Width2.75

Package Length26.0

Weight3.21 PG

Part CategoryPerformance Parts

SeriesSA4 Series

Boot IncludedNo

Lower Mount TypeEye 15.9mm

PositionRear

Extended Length13.66 in.

Collapsed Length (In)10.18 in.

Internal DesignMonotube

FinishPolished Aluminum

Upper Mount TypeEye 15.9mm

Vendor Part NumberB5A410130520

Package Qty1

Package TypeEA
