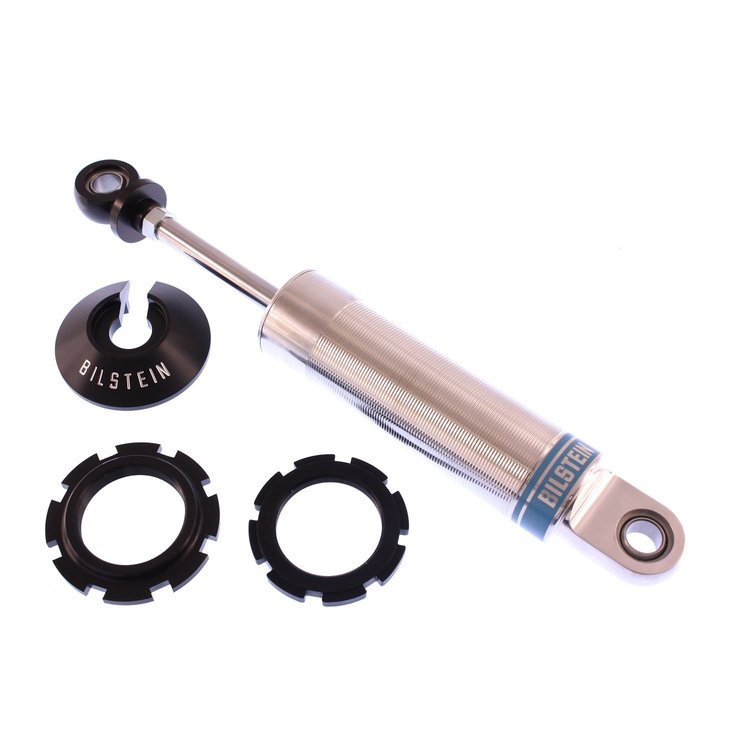

A510132030 CA5 Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Spring Seat Included: Yes
Rebound @0.52M/S: 1750
Extended Length (IN): 13.66
Collapsed Length (IN): 10.18
Collapsed Length (MM): 258.5
Extended Length (MM): 347.0
Compression @0.52M/S: 640
Recommended Mounting Length (IN): 11.50
Position: Front

Part TypeCoilover Shock

BrandBILSTEIN

Package Height2.75

Package Width5.25

Package Length19.75

Weight4.97 PG

Part CategoryPerformance Parts

SeriesCA5 Series

Boot IncludedNo

Lower Mount Type15.9mm Heim

PositionFront

Extended Length13.66 in.

Collapsed Length (In)10.18 in.

Internal DesignMonotube

FinishPolished Aluminum

Upper Mount Type15.9mm Heim

Vendor Part NumberB5A510132030

Package Qty1

Package TypeEA
