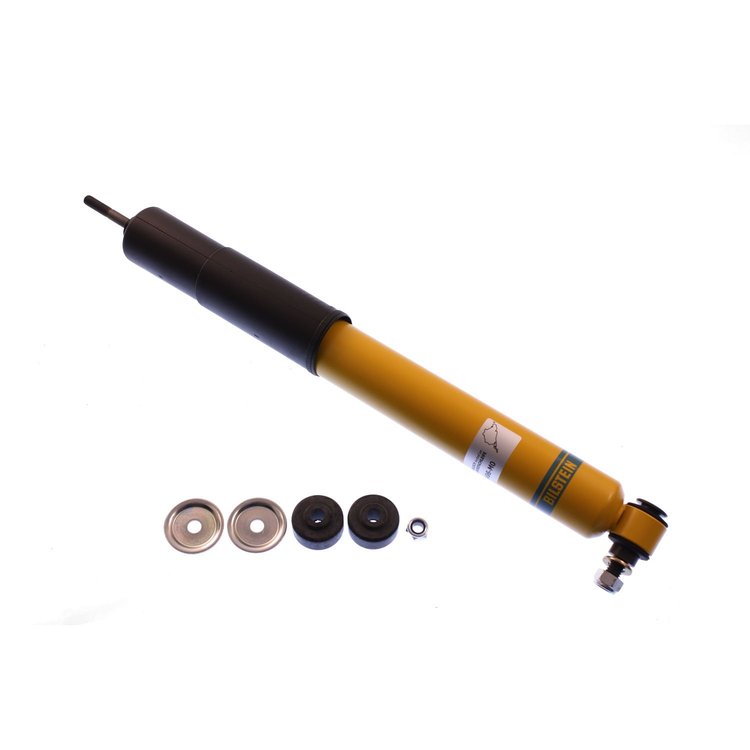

AK1196 AK Series Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Body Design: Stock Mount Smooth Body
Extended Length (IN): 19.80
Collapsed Length (IN): 12.36
Body Diameter (ID): 46mm
Collapsed Length (MM): 314.0
Extended Length (MM): 503.0
Valving Identifier: 310/130
Piston Type: Digressive
Body Material: Steel
Rebound @0.26M/S: 1380
Compression @0.26M/S: 580

Part TypeShock Absorber

BrandBILSTEIN

Package Height3.55

Package Width3.55

Package Length26.8

Weight7.0 PG

Part CategoryPerformance Parts

Boot IncludedBlue Straight

Lower Mount TypeCantilever

Shaft Diameter11mm

Piston Diameter46mm

Collapsed Length (In)12.36 in.

Upper Mount TypeStem

SeriesAK Series

Body MaterialSteel

Travel Length7.44 in.

Extended Length19.80 in.

Adjustable DampingNon-Adjustable

Internal DesignMonotube

FinishYellow Paint

Vendor Part NumberB5AK1196

Package Qty1

Package TypeEA
